Small Form, Serious Speed: Unleashing 15K Enterprise Performance with the HPE QR477A 300GB SAS Drive

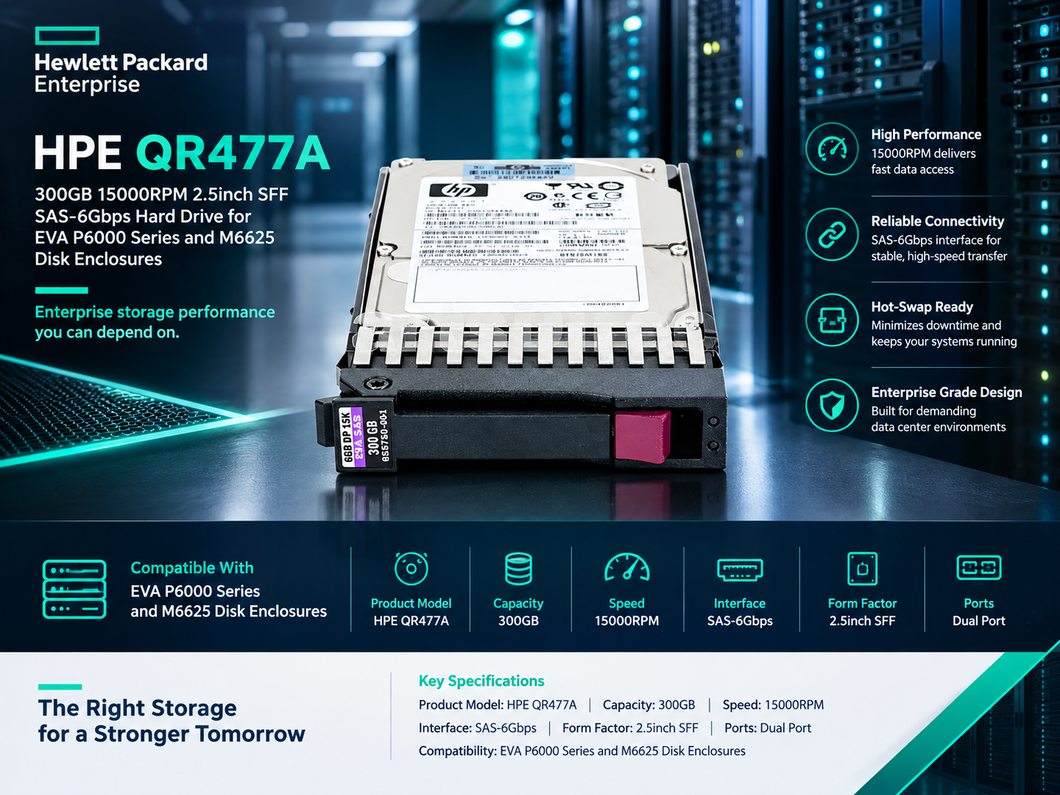

HPE QR477A 300GB 15K SAS Hard Drive: High-Performance Storage for EVA P6000 Environments

The HPE QR477A 300GB 15000RPM 2.5-inch Small Form Factor (SFF) SAS-6Gbps Hard Drive is an enterprise-class storage drive designed specifically for compatible HPE EVA P6000 storage systems and M6625 2.5-inch SAS disk enclosures.

Combining a 15,000 RPM rotational speed with a 6Gbps SAS interface, the QR477A is built for environments where fast mechanical disk response, dependable enterprise operation, and dense storage are important. HPE's EVA P6000 documentation specifically identifies the QR477A as the M6625 300GB 6G SAS 15K RPM 2.5-inch HDD.

Unlike general-purpose desktop hard drives, the QR477A belongs to a storage ecosystem designed around redundant SAS connectivity, enterprise disk groups, virtualization, RAID-style Vraid protection, and continuous data availability.

HPE QR477A Key Specifications

Technical Overview

HPE's PartSurfer identifies the QR477A as an M6625 300GB 6G SAS 15K RPM SFF dual-port hard drive, with spare part number 665750-001.

Designed for HPE EVA P6000 Storage

Purpose-Built for Enterprise Storage Arrays

The QR477A is not simply a generic 300GB SAS hard drive. HPE lists it specifically as one of the supported SFF SAS drives for the EVA P6000 family.

The EVA P6000 product documentation lists the 300GB 15K RPM SFF SAS drive under the M6625 enclosure's supported storage options. The same documentation distinguishes it from the 300GB 10K RPM, 450GB 10K RPM, 600GB 10K RPM, 900GB 10K RPM, and 1TB 7.2K RPM SFF drives.

This makes the QR477A particularly relevant when maintaining or expanding an existing EVA P6000 configuration that uses high-performance 15K SAS disks.

Compatible M6625 Disk Enclosure

The HPE M6625 is a 2U, 25-bay SFF SAS disk enclosure designed for EVA P6000 configurations. HPE documentation confirms that the M6625 supports 25 SFF drives and connects to the EVA controllers using 6Gbps SAS.

The QR477A was designed around this storage architecture, making it a natural choice for supported M6625 configurations.

15,000 RPM Performance

Built for High I/O Workloads

One of the most important characteristics of the QR477A is its 15,000 RPM spindle speed.

Compared with slower 7,200 RPM and 10,000 RPM mechanical hard drives, a 15K drive has lower rotational latency. This can improve responsiveness when applications generate frequent random read and write operations.

For enterprise storage systems, this characteristic can be valuable for workloads such as:

• Database applications
• Transaction processing
• Virtualized environments
• Business applications
• Frequently accessed enterprise data
• High-I/O application workloads
• Mission-critical storage environments

HPE categorizes the 300GB 15K SFF SAS option as a high-performance drive within the EVA P6000 platform.

6Gbps SAS Interface

Enterprise Serial Attached SCSI Connectivity

The QR477A uses a 6Gbps SAS interface, matching the storage architecture of the M6625 and EVA P6000.

SAS provides the enterprise connectivity required for storage arrays where multiple drives, controllers, redundant paths, and storage management features work together.

The EVA P6000 architecture uses 6Gbps SAS connections between the controllers and M6612/M6625 disk enclosures. HPE also describes redundant paths to dual-ported drives within this architecture.

Understanding the 6Gbps Rating

The 6Gbps specification represents the interface's theoretical signaling rate. It should not be interpreted as the mechanical HDD continuously transferring data at 6Gbps.

Actual performance depends on the drive mechanism, workload, queue depth, storage controller, RAID or Vraid configuration, disk group design, and other components in the storage system.

The benefit of the 6Gbps SAS interface is that the drive is designed to communicate efficiently with the compatible enterprise storage infrastructure.

Dual-Port SAS Architecture

Redundant Storage Connectivity

The QR477A is specified as a dual-port SAS drive. This is particularly important in the EVA P6000 environment because the storage architecture is designed around redundant SAS connectivity.

HPE describes the P6000 architecture as providing redundant SAS lanes between controllers and drive enclosures, with redundant paths to dual-ported drives.

This architecture helps prevent a single connectivity path from becoming a single point of failure.

Designed for High Availability

Enterprise storage is rarely designed around one drive and one connection. Instead, multiple components work together to maintain access to data when individual hardware components require maintenance or experience a failure.

The QR477A's dual-port SAS design fits into this broader redundant storage architecture when installed in a supported configuration.

2.5-Inch SFF Design

High-Density Storage in a 2U Enclosure

The Small Form Factor design is another major advantage of the QR477A.

The M6625 enclosure can accommodate 25 SFF drives in a 2U chassis, providing considerably greater drive density than a comparable large-form-factor enclosure. HPE documentation confirms the 25-drive SFF capacity of the M6625.

For data centers where rack space is valuable, this compact design allows a large number of enterprise storage devices to be installed in a relatively small physical footprint.

Efficient Use of Data Center Space

Dense storage configurations can provide more drive spindles per rack unit, potentially increasing aggregate storage performance while keeping the physical footprint controlled.

This makes the QR477A particularly relevant for organizations maintaining EVA P6000 systems where storage density and established infrastructure remain important considerations.

Enterprise Storage Performance

Fast Mechanical Response

A 15K RPM HDD is designed to reduce rotational latency compared with slower spinning drives.

While modern SSDs offer dramatically lower latency, 15K SAS HDDs were designed to provide a high-performance mechanical storage option for enterprise arrays.

The QR477A therefore occupies an important position in legacy and established storage environments where replacing an entire array with flash storage may not be practical.

Suitable for Frequently Accessed Data

The drive's performance characteristics make it better suited to frequently accessed data than slower capacity-oriented drives.

For example, a storage administrator may use high-performance SAS drives for active application data while reserving higher-capacity mid-line SAS drives for backup, archive, or less frequently accessed information.

HPE itself differentiates high-performance SAS drives from mid-line SAS drives in its EVA P6000 documentation.

EVA P6000 Disk Groups and Vraid

Designed for Virtualized Storage

The EVA P6000 platform uses virtualized storage technology, allowing physical disk capacity to be organized into logical storage resources.

HPE lists support for several Vraid configurations, including Vraid 0, Vraid 1, Vraid 0+1, Vraid 5, Vraid 0+5, and Vraid 6.

This allows storage administrators to configure storage according to application requirements for performance, usable capacity, and redundancy.

Consistency Within Disk Groups

HPE recommends using the same drive type and capacity within a disk group because EVA virtualization allocates space proportionally to the highest-capacity drive in the group.

This is an important consideration when adding QR477A drives to an existing EVA P6000 environment. Administrators should evaluate the existing disk group configuration rather than simply adding a drive based on physical compatibility.

Enterprise Workload Applications

Database Storage

Databases can generate large numbers of random I/O requests, making high-speed mechanical drives useful in older enterprise environments.

The QR477A's 15K RPM mechanism can provide responsive storage for compatible database workloads running on EVA P6000 infrastructure.

Examples can include transactional applications, ERP systems, business databases, and other workloads that depend on relatively fast access to active data.

Virtualization Environments

The EVA P6000 platform was designed to support virtualized server environments, including VMware and other supported operating systems and platforms. HPE documentation specifically identifies VMware among the supported environments.

The QR477A can therefore serve as a storage component in compatible virtualization infrastructures where the underlying EVA system continues to provide enterprise storage services.

Business Applications

Enterprise applications often require predictable access to shared storage. Systems supporting business operations, application servers, and transaction-heavy workloads can benefit from the higher rotational speed of 15K SAS HDDs compared with slower mid-line drives.

Storage Capacity and Performance Balance

Why 300GB Can Still Be Useful

300GB may appear small compared with modern multi-terabyte drives, but enterprise storage selection is not based solely on capacity.

The QR477A prioritizes performance and enterprise compatibility rather than maximum capacity.

For an existing EVA P6000 array, a 300GB 15K SAS drive can be useful when replacing a failed drive or maintaining a disk group that was originally configured with 300GB high-performance drives.

Performance Over Maximum Capacity

The EVA P6000 platform supported several SFF drive classes, ranging from SSDs to 15K, 10K, and 7.2K SAS HDDs. The QR477A occupies the high-performance 15K category.

This makes it more appropriate for performance-focused workloads than for applications where the primary objective is inexpensive bulk capacity.

M6625 Storage Density

25 Drives in a 2U Enclosure

The M6625 enclosure provides 25 SFF drive bays in a 2U form factor. HPE documentation lists support for up to 250 SFF drives for certain EVA P6000 configurations and up to 450 SFF drives for higher-end configurations.

When populated with QR477A drives, such an architecture can provide a large number of mechanical spindles within a relatively compact rack footprint.

Scaling Enterprise Storage

The M6625 was designed to expand EVA P6000 storage configurations. HPE documentation describes support for multiple M6625 enclosures depending on the EVA P6000 model.

This scalability allowed organizations to expand storage capacity without abandoning their existing EVA infrastructure.

HPE QR477A for Storage Expansion

Adding Capacity to Existing EVA Systems

The QR477A can be relevant when additional compatible storage is required for an existing EVA P6000 deployment.

HPE documentation states that supported SAS drives could be ordered when the array was purchased or added later when additional capacity was required.

This makes the QR477A useful not only as a replacement drive but also as part of an appropriate storage expansion strategy.

Maintaining Existing Hardware Investment

Replacing individual drives can be significantly simpler than replacing an entire storage platform.

For organizations with established EVA P6000 systems, maintaining compatible storage components can help preserve existing controllers, enclosures, cabling, management processes, and application configurations.

Replacement Drive Considerations

Verify the Exact EVA Model

Before purchasing a QR477A, confirm the exact EVA P6000 model and M6625 configuration.

Although HPE officially lists QR477A as an M6625 300GB 6G SAS 15K SFF HDD, storage compatibility should still be checked against the specific system configuration and firmware.

Check Existing Disk Group Configuration

If the drive is intended to replace a failed member of a disk group, check the existing drive type, capacity, and configuration.

A replacement should be appropriate for the array's requirements rather than selected solely because it has the same physical dimensions.

Firmware and Storage Management

Enterprise storage arrays can have specific controller and firmware requirements. HPE's EVA documentation identifies firmware requirements for certain drive options and configurations, reinforcing the importance of checking the system's supported configuration before installation.

QR477A vs. 10K SAS Drives

15K Performance Advantage

The QR477A is the 15K RPM option in the M6625 SFF drive family, while HPE also offered 300GB, 450GB, 600GB, and 900GB 10K RPM SFF SAS drives.

The 15K model is designed for workloads where access performance is more important than maximizing capacity or reducing power consumption.

Choosing the Appropriate Drive Class

A 10K drive may be appropriate where capacity, power consumption, and performance requirements are balanced differently. A 15K drive makes more sense when fast mechanical access is a priority.

The right choice should therefore be based on the existing EVA disk group, workload characteristics, and storage requirements.

QR477A vs. Modern SSD Storage

Mechanical Storage in a Flash-Dominated Market

Modern enterprise SSDs can deliver substantially lower latency and much higher I/O performance than mechanical hard drives.

However, the QR477A remains relevant for organizations maintaining compatible EVA P6000 infrastructure.

Replacing individual HDDs with the correct supported drives can be a practical maintenance strategy when the storage array itself remains operational and suitable for the workload.

A Practical Legacy Storage Component

For legacy data centers, the QR477A can provide a way to maintain existing storage architecture without forcing an immediate migration to a completely new platform.

This can be especially useful for workloads that do not justify a complete infrastructure replacement.

Enterprise Reliability and Availability

Designed for Continuous Storage Environments

The QR477A is an enterprise storage drive intended for use within HPE's EVA storage architecture rather than a conventional desktop PC.

The EVA P6000 platform was designed with redundant components and redundant SAS paths to support continuous enterprise storage availability.

Redundancy at the Storage-System Level

A drive by itself cannot provide complete storage availability. The broader system architecture, including controllers, SAS paths, disk enclosures, disk groups, and Vraid configuration, determines the overall resilience of the storage solution.

The QR477A contributes to that architecture through its dual-port SAS design.

Why Choose the HPE QR477A?

Key Advantages

The HPE QR477A offers several characteristics that make it valuable for compatible EVA environments:

• 300GB enterprise storage capacity
• 15,000 RPM performance-oriented mechanical design
• 6Gbps SAS interface
• 2.5-inch SFF form factor
• Dual-port SAS connectivity
• Designed for HPE M6625 disk enclosures
• Officially listed as an EVA P6000 supported drive
• High-density storage capability
• Suitable for performance-focused enterprise workloads
• Useful for maintaining established EVA infrastructure

HPE documentation specifically lists the QR477A as the 300GB 6G SAS 15K RPM 2.5-inch HDD for the M6625, confirming its intended storage platform.

Final Thoughts

The HPE QR477A 300GB 15000RPM 2.5-inch SFF SAS-6Gbps Hard Drive is a specialized enterprise storage component built around the requirements of HPE EVA P6000 environments.

Its combination of 15K RPM performance, 6Gbps SAS connectivity, dual-port architecture, and compact SFF design makes it particularly well suited to compatible M6625 disk enclosures and EVA P6000 storage arrays. HPE officially lists the QR477A within the P6000's supported 300GB 15K SFF SAS drive options.

For organizations maintaining an existing EVA P6000 installation, the QR477A can serve as a practical replacement or expansion drive where its capacity, performance class, firmware requirements, and compatibility match the existing storage configuration.

Although modern SSDs have transformed enterprise storage performance, high-speed 15K SAS HDDs such as the QR477A continue to have a role in maintaining established enterprise storage systems. Its value lies not simply in its 300GB capacity, but in its compatibility with the EVA P6000 architecture, high-performance 15K mechanism, dual-port SAS connectivity, and dense 2.5-inch SFF form factor.
