Engineered for Enterprise Speed: HPE 652611-B21 300GB SAS SmartDrive for ProLiant Servers

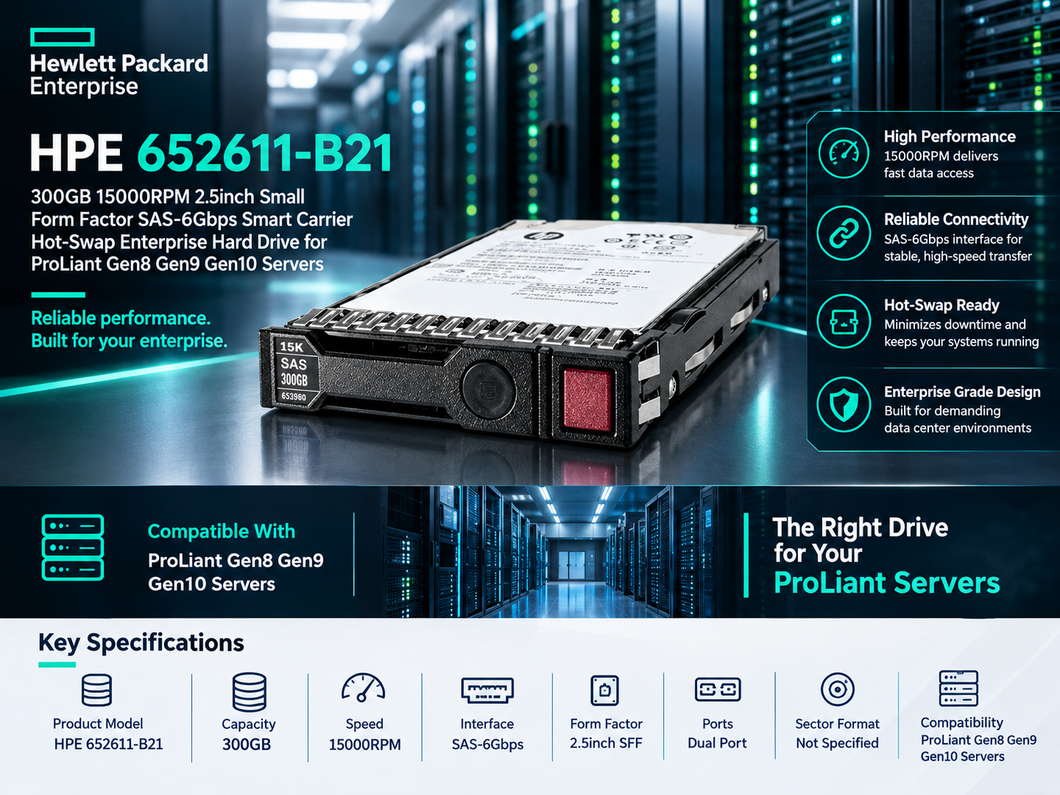

HPE 652611-B21 300GB 15K SAS Hard Drive: High-Speed Enterprise Storage for ProLiant Servers

The HPE 652611-B21 300GB 15000RPM 2.5-inch Small Form Factor SAS-6Gbps Smart Carrier Hot-Swap Enterprise Hard Drive is a performance-focused enterprise HDD designed for compatible HPE ProLiant server environments. It combines a 15,000 RPM rotational speed, 6Gbps SAS interface, 300GB capacity, 2.5-inch SFF form factor, and HPE SmartDrive Carrier technology in a hot-plug configuration.

HPE's own SAS hard drive reference identifies the 652611-B21 as an HP 300GB 6G SAS 15K RPM SFF 2.5-inch Smart Carrier Enterprise hard drive, with a 3-year warranty configuration.

The drive is particularly relevant to organizations maintaining HPE ProLiant Gen8 and Gen9 infrastructure that needs a fast mechanical SAS drive for databases, virtualization, applications, RAID arrays, and other enterprise workloads.

Important compatibility note: HPE's official references clearly list the 652611-B21 across numerous Gen8 and Gen9 ProLiant systems. Some third-party listings may mention additional generations or platforms, but Gen10 compatibility should be verified against the exact server, controller, backplane, and firmware before purchase.

HPE 652611-B21 Key Specifications

HPE lists the 652611-B21 alongside its other SmartDrive SFF enterprise SAS drives, including 10K and 15K models.

15,000 RPM Performance for Enterprise Workloads

Faster Mechanical Access

The defining feature of the HPE 652611-B21 is its 15,000 RPM rotational speed. For a mechanical hard drive, higher rotational speed reduces the time the platters need to rotate into position, helping improve random-access responsiveness.

The published specifications give the drive an average seek time of approximately 2.9 ms, a track-to-track seek time of approximately 0.4 ms, and a full-stroke seek time of approximately 5.3 ms.

This makes the drive particularly suitable for workloads where frequent random disk operations are more important than maximum storage capacity.

Designed for I/O Intensive Applications

A 15K SAS HDD can be useful for applications such as:

• Database servers
• Transaction processing
• Virtualization
• Enterprise applications
• Frequently accessed business data
• RAID arrays
• Server operating-system volumes
• Legacy high-performance storage environments

Compared with slower 7,200 RPM drives, the 15K mechanism is designed around faster mechanical response.

6Gbps SAS Interface

Enterprise Serial Attached SCSI

The 652611-B21 uses a 6Gbps SAS interface, also known as SAS-2. HPE categorizes this drive within its 6G SAS Hot Plug SmartDrive SFF Enterprise drive family.

SAS is designed for enterprise storage environments where multiple drives operate behind dedicated storage controllers and backplanes.

The interface provides the communication pathway between the hard drive and compatible HPE server hardware. Actual HDD performance, however, is determined by the mechanical drive mechanism, workload, controller, queue depth, RAID configuration, and other system components.

Why SAS Matters in Servers

Unlike typical desktop SATA storage, SAS is built around enterprise server and storage requirements. Features such as dual-port connectivity and compatibility with enterprise storage controllers make SAS particularly useful in multi-drive server environments.

For organizations maintaining compatible HPE ProLiant infrastructure, using the correct SAS drive can help preserve the intended storage architecture.

SmartDrive Carrier Design

Integrated HPE Smart Carrier

The 652611-B21 is supplied as a Smart Carrier drive, making it part of HPE's SmartDrive hot-plug storage ecosystem.

HPE documentation categorizes it specifically as a SAS Hot Plug with SmartDrive SFF Enterprise Drive.

The SmartDrive carrier is designed to work with compatible HPE server drive bays and provides a standardized physical installation mechanism.

Easier Server Maintenance

Hot-plug storage is particularly valuable in enterprise environments because supported systems can allow storage devices to be replaced without shutting down the entire server.

Actual hot-plug operation depends on the server, backplane, controller, RAID configuration, and operating environment. Administrators should always follow the HPE server's documented drive replacement procedure.

Compact 2.5-Inch SFF Form Factor

High Storage Density

The 2.5-inch Small Form Factor design allows enterprise servers to accommodate numerous drives within a relatively compact chassis.

The published dimensions for this drive are approximately 16.0mm high, 78.7mm wide, and 138.4mm deep.

This compact footprint is one reason SFF SAS drives became common in dense ProLiant server configurations.

More Spindles in Limited Rack Space

For storage administrators, SFF drives can provide an opportunity to install more individual disks within the same physical space. Multiple 15K drives can also provide substantial aggregate I/O capability when combined through a suitable RAID controller.

The 652611-B21 is therefore aimed at environments where performance and drive density matter more than extremely high capacity per drive.

Enterprise-Class 300GB Capacity

Capacity for Performance-Focused Storage

The 300GB capacity may appear modest compared with today's multi-terabyte HDDs and SSDs, but the 652611-B21 was designed for a different storage priority.

It combines moderate capacity with a 15K RPM enterprise mechanism, making it more focused on responsive disk access than bulk storage.

This can make a 300GB drive practical for:

• Operating-system volumes
• Database storage
• Application partitions
• High-I/O virtual machines
• RAID configurations
• Replacement of failed 300GB enterprise drives

Useful for Existing RAID Arrays

A 300GB drive can be especially valuable when maintaining an older RAID array. Replacing a failed drive with a compatible model can be preferable to redesigning an entire storage system.

Before replacing a drive, administrators should verify the RAID controller's requirements and confirm that the replacement is supported.

Dual-Port SAS Connectivity

Designed for Enterprise Storage Architectures

The 652611-B21 is commonly specified as a dual-port SAS hard drive. This provides two SAS paths to the drive in compatible configurations.

Dual-port capability is especially relevant in enterprise storage environments where redundant connectivity is used to reduce dependency on a single path.

Redundancy Depends on the Complete System

A dual-port drive does not independently create a highly available storage environment. The benefit depends on the server backplane, SAS controller, cabling, multipath configuration, and software architecture.

When all compatible components are configured appropriately, dual-port SAS connectivity can contribute to a more resilient storage design.

HPE ProLiant Gen8 Compatibility

Broad Gen8 Support

The 652611-B21 was offered as a storage option across numerous HPE ProLiant Gen8 systems.

HPE documentation for systems such as the ProLiant DL580 Gen8 lists the 652611-B21 among its supported 300GB 6G SAS 15K RPM SFF enterprise drives.

Third-party compatibility references also list systems including the:

• ProLiant BL420c Gen8
• ProLiant BL460c Gen8
• ProLiant BL465c Gen8
• ProLiant BL660c Gen8
• ProLiant DL120 Gen8
• ProLiant DL160 Gen8
• ProLiant DL360 Gen8
• ProLiant DL360p Gen8
• ProLiant DL380 Gen8
• ProLiant DL380p Gen8
• ProLiant DL385p Gen8
• ProLiant DL560 Gen8
• ProLiant DL580 Gen8
• ProLiant ML350p Gen8
• ProLiant SL-series Gen8 systems

Exact compatibility depends on the installed drive cage and storage controller.

HPE ProLiant Gen9 Compatibility

Continued Use Across Gen9

The drive also appears in HPE documentation for Gen9 platforms. For example, HPE's ProLiant DL580 Gen9 Product Information Reference lists the 652611-B21 as a supported 300GB 6G SAS 15K RPM SFF Smart Carrier enterprise drive.

Third-party compatibility information additionally lists various Gen9 ProLiant systems, including DL20, DL120, DL360, DL380, DL388, DL560, DL580, ML110, ML150, ML350, BL-series, SL-series, and XL-series systems.

Gen10 Compatibility Should Be Verified

Although the product description supplied for this article includes Gen10, HPE's standard product references located for the 652611-B21 identify it primarily as a 6G SAS enterprise drive associated with earlier SmartDrive platforms. HPE's current reference separately lists newer 12G SAS 15K drives such as the 759208-B21 and 870753-B21.

Therefore, customers considering the 652611-B21 for a Gen10 server should verify the exact Gen10 server model and HPE QuickSpecs before purchasing rather than assuming compatibility from the physical SFF format alone.

Compatible HPE Storage Controllers

Designed for Smart Array Environments

HPE lists the 652611-B21 as an option for multiple Smart Array controllers. For example, the HPE Smart Array P822 documentation includes the 300GB 6G SAS 15K RPM SFF SmartDrive enterprise drive among its supported hard-drive options.

The HPE Smart Array P430 documentation also lists the 652611-B21 among compatible enterprise SFF SAS drives.

This makes the drive a useful component for compatible RAID configurations built around HPE Smart Array controllers.

RAID Applications

Multiple 652611-B21 drives can be combined using an appropriate RAID controller to provide a balance of performance, capacity, and fault tolerance.

Depending on the selected RAID level, administrators can prioritize different characteristics such as:

• Read and write performance
• Usable capacity
• Drive redundancy
• Fault tolerance
• Rebuild behavior
• Storage availability

The appropriate RAID level depends on the application and organization's storage requirements.

Database Server Applications

Fast Random I/O

Database workloads often generate many random read and write operations. Mechanical storage performance is influenced heavily by seek time and rotational latency, making 15K RPM HDDs a traditional choice for performance-oriented enterprise applications.

The 652611-B21's 15K RPM mechanism and approximately 2.9 ms average seek specification make it suitable for compatible legacy database environments where SAS HDD storage remains in use.

Enterprise Application Databases

The drive can be considered for compatible:

• SQL database servers
• ERP applications
• Business management systems
• Transaction-processing applications
• Inventory databases
• Customer-management platforms
• Legacy enterprise applications

Modern SSDs will generally provide substantially lower latency, but replacing individual HDDs can remain practical when maintaining an established ProLiant infrastructure.

Virtualization Storage

Supporting Multiple Virtual Machines

Virtualization servers can generate unpredictable storage activity because multiple virtual machines share the same physical disks.

A group of 15K SAS drives can provide useful mechanical I/O performance for smaller or legacy virtualization environments.

The actual result depends on the number of drives, RAID configuration, controller, workload, and virtual-machine activity.

Legacy Virtualization Infrastructure

The 652611-B21 can be particularly relevant for organizations maintaining older VMware or other virtualization environments running on compatible ProLiant servers.

For newer deployments with demanding IOPS and latency requirements, enterprise SSDs may be a more appropriate storage technology.

Application and File Server Storage

Business Application Storage

Enterprise applications often benefit from responsive storage when users and services repeatedly access relatively small files or database records.

The 15K RPM mechanism makes the 652611-B21 better suited to active application data than large archival workloads.

File Server Considerations

For general file storage, capacity is often more important than maximum disk responsiveness. In those situations, larger 7.2K RPM drives may offer greater capacity per drive.

The 652611-B21 is better positioned for environments where performance per spindle is a higher priority.

652611-B21 Compared With 10K SAS Drives

15K RPM Versus 10K RPM

HPE's SmartDrive SFF family included both 10K and 15K SAS HDDs. The 652611-B21 belongs to the 15K category, while the 652564-B21, for example, is a 300GB 6G SAS 10K RPM SFF enterprise drive.

The higher rotational speed of the 652611-B21 provides lower rotational latency and is intended for workloads that benefit from faster mechanical access.

Capacity and Workload Trade-Off

The HPE 6G SFF family also included larger 10K models such as 450GB, 600GB, and 900GB drives.

This gives administrators different options depending on whether the priority is performance, capacity, or a combination of both.

652611-B21 Compared With 12G SAS HDDs

Understanding the Interface Difference

The 652611-B21 is a 6Gbps SAS drive. HPE later introduced 12Gbps SAS 15K SFF models, including the 759210-B21 and 759212-B21.

A 12Gbps interface offers greater theoretical interface bandwidth, but the interface speed alone does not determine mechanical HDD performance.

For a legacy Gen8 or Gen9 server designed around 6G SAS, a correctly supported 6G enterprise drive can be an appropriate replacement.

Hot-Swap Storage for Data Center Maintenance

Minimize Planned Downtime

Hot-plug drives are useful in data centers because compatible servers can allow administrators to replace failed storage without shutting down the complete server.

This can simplify maintenance and reduce disruption to business applications.

Follow the Server's Replacement Procedure

Hot-swap capability should never be assumed simply because a drive has a carrier. The server, backplane, controller, operating system, and RAID configuration must all support the operation.

Administrators should identify the failed drive through the server management interface and follow the relevant HPE service procedure.

Installation and Compatibility Checklist

Verify Before Purchasing

Before installing an HPE 652611-B21, check:

• Exact ProLiant server model
• Server generation
• 2.5-inch SFF drive-bay support
• SAS controller model
• Smart Array compatibility
• Backplane type
• RAID configuration
• Drive firmware requirements
• Existing drive capacity and speed
• Hot-plug support
• Required carrier configuration

Physical compatibility alone does not guarantee full system support.

Check the Existing Storage Configuration

If the drive is intended as a RAID replacement, compare the existing drive's capacity, interface, rotational speed, sector format, and supported configuration with the replacement.

For critical enterprise arrays, the controller manufacturer's replacement guidelines should take priority.

Why the HPE 652611-B21 Remains Relevant

A Practical Choice for Legacy HPE Servers

Many organizations continue to operate established ProLiant infrastructure because their existing applications remain stable and functional.

For these environments, replacing a failed storage drive can be considerably simpler than replacing the entire server platform.

The 652611-B21 provides a compact, enterprise-grade 15K SAS option for compatible systems.

Performance-Focused Mechanical Storage

The combination of 300GB capacity, 15K RPM speed, 6Gbps SAS connectivity, dual-port architecture, and SmartDrive hot-plug design gives the 652611-B21 a clear performance-oriented role within HPE's enterprise HDD portfolio. HPE officially identifies the model as a 300GB 6G SAS 15K RPM SFF Smart Carrier Enterprise drive.

Final Thoughts

The HPE 652611-B21 300GB 15000RPM 2.5-inch SFF SAS-6Gbps Smart Carrier Hot-Swap Enterprise Hard Drive is designed for organizations that need fast, reliable mechanical storage for compatible HPE ProLiant infrastructure.

Its 15,000 RPM spindle speed provides faster mechanical access than slower enterprise HDDs, while the 6Gbps SAS interface and dual-port architecture make it suitable for enterprise server and RAID environments. Its 2.5-inch SFF design also allows dense storage configurations, while the SmartDrive Carrier simplifies installation in supported HPE hot-plug systems.

For ProLiant Gen8 and Gen9 servers, the 652611-B21 has well-documented support across numerous HPE platforms. For Gen10 systems, compatibility should be confirmed against the specific server and controller because HPE's official references distinguish this 6G model from later 12G SAS offerings.

For compatible legacy enterprise environments, the HPE 652611-B21 remains a practical storage component when the priority is maintaining existing infrastructure while retaining the responsive mechanical performance associated with 15K SAS technology.
