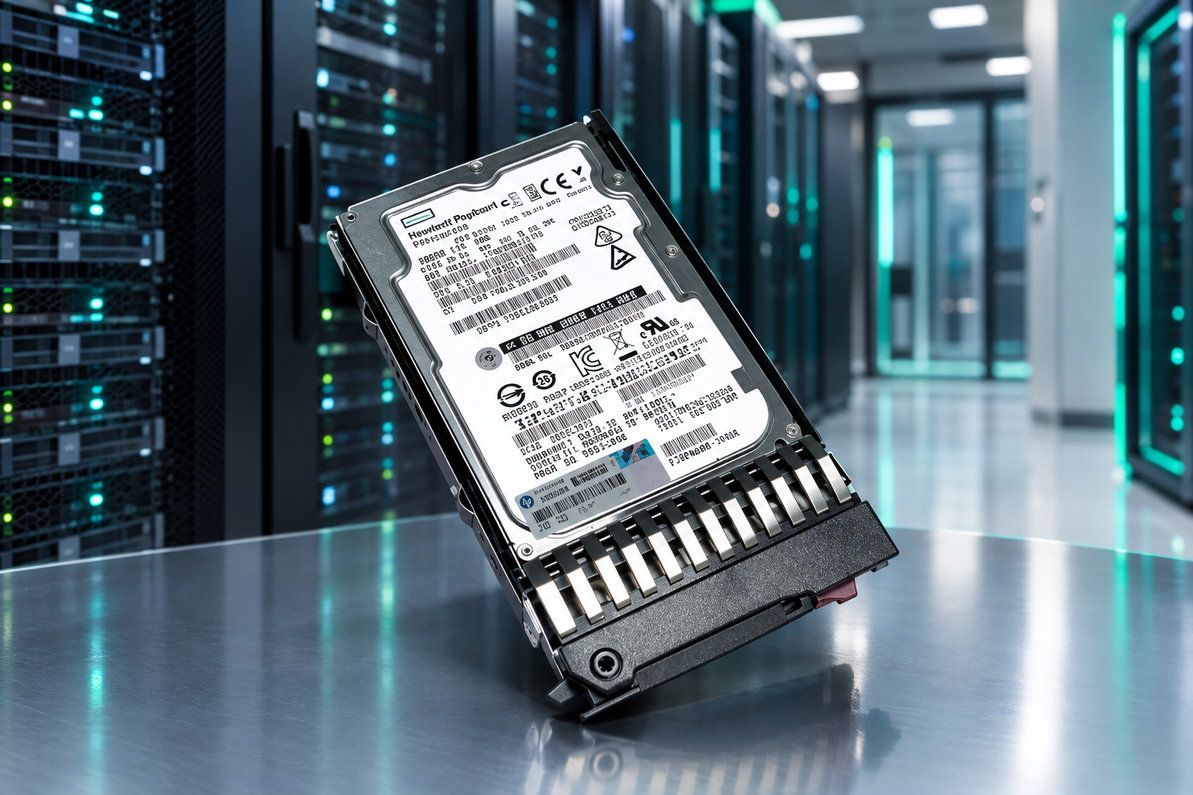

Built for Speed, Engineered for the Enterprise: HPE 785099-B21 300GB 15K SAS Hard Drive

HPE 785099-B21 300GB 15K SAS Hard Drive: Enterprise Storage Performance in a Compact SFF Design

The HPE 785099-B21 300GB 15000RPM 2.5-inch SFF SAS-12Gbps Dual Port Enterprise Hard Drive is designed for server and storage environments where fast disk access, dependable enterprise operation, and efficient rack density are important. Featuring a 15,000 RPM spindle speed and a 12Gbps SAS interface, this HPE enterprise hard drive provides the responsive storage performance needed for demanding workloads.

HPE documentation identifies the 785099-B21 as a 300GB 12G SAS 15K rpm SFF 2.5-inch Enterprise hard drive, with a 3-year warranty configuration in HPE product documentation.

The drive uses the compact SFF form factor, making it suitable for compatible HPE ProLiant servers, blade systems, and selected storage environments where multiple drives need to fit into limited physical space.

Key Specifications of HPE 785099-B21

Technical Specifications

HPE's SAS hard drive specifications list the 785099-B21 at 300,000MB capacity, 12Gbps SAS connectivity, 15,000 RPM, and a 2.5-inch SFF physical configuration.

15,000 RPM Performance for Demanding Server Workloads

Designed for Fast Disk Access

The 15,000 RPM spindle speed is one of the defining characteristics of the HPE 785099-B21. Compared with slower enterprise HDDs, a 15K SAS drive can provide faster rotational access, making it particularly useful for workloads that perform frequent random reads and writes.

This characteristic makes the drive appropriate for applications such as database workloads, transaction processing, virtualization environments, application servers, and other systems where storage response time matters.

The published HPE specifications give the drive a typical average seek time of approximately 2.9 ms, with a typical single-track seek of 0.15 ms.

A Practical Alternative to Replacing an Entire Storage Platform

For organizations operating older HPE infrastructure, upgrading or replacing individual failed drives can be more practical than replacing an entire server or storage array. The 785099-B21 can provide a straightforward replacement option when the server's controller, backplane, firmware, and drive bay support the specific drive configuration.

This is especially relevant for businesses maintaining established ProLiant environments that continue to perform important workloads.

12Gbps SAS Interface

Enterprise Serial Attached SCSI Connectivity

The HPE 785099-B21 uses a 12Gbps SAS interface, providing a high-speed storage connection between the drive and a compatible SAS controller or storage enclosure.

SAS is widely used in enterprise infrastructure because it is designed around features important to server storage, including reliable communication, scalability, and support for multi-drive environments.

HPE's official product information lists the 785099-B21 among its 12G SAS 15K RPM SFF Enterprise drives.

SAS Bandwidth and Real-World Performance

The 12Gbps figure represents the maximum interface transfer rate rather than the sustained mechanical throughput of the spinning disk itself. The physical HDD mechanism remains the primary limitation for sequential and random storage performance.

This distinction is important when planning an enterprise storage upgrade. A 12Gbps SAS interface does not mean that the mechanical hard drive continuously transfers data at 12Gbps. Instead, it provides a modern high-speed interface suitable for compatible SAS infrastructure.

Dual-Port Enterprise Storage Architecture

Built for Enterprise SAS Environments

The 785099-B21 is commonly specified as a dual-port enterprise SAS drive. Dual-port SAS designs can provide connectivity paths that are useful in enterprise storage architectures where redundancy and controller accessibility are important.

However, the exact benefits of both ports depend on the SAS controller, backplane, enclosure, and storage architecture being used. Compatibility should therefore be verified before installation.

Better Fit for Shared and Redundant Storage Designs

In enterprise environments, storage is often designed around redundancy rather than a single-drive configuration. Multiple SAS drives can be combined with RAID controllers and redundant connectivity to help maintain service availability when individual components experience problems.

The 785099-B21 is therefore more than a basic desktop hard drive. Its enterprise SAS design is intended for infrastructure where storage reliability, manageability, and predictable operation are important.

Compact 2.5-Inch SFF Form Factor

High Storage Density

The 2.5-inch Small Form Factor design allows more drives to be installed within a given amount of rack or server space compared with traditional 3.5-inch drives.

The HPE specifications identify the physical dimensions as approximately 16.0mm high, 78.7mm wide, and 138.4mm deep.

For organizations operating dense server configurations, this compact design can help maximize the number of storage devices installed within supported drive bays.

Suitable for Dense HPE Server Configurations

The SFF format was widely used across HPE server generations and blade platforms. Compatibility information for this particular part number includes numerous ProLiant BL, DL, ML, SL, and WS platforms, although the complete supported list should always be checked against the specific server configuration.

HPE ProLiant Compatibility

Designed for Selected ProLiant Platforms

The 785099-B21 is associated with a range of HPE ProLiant systems, including older generations of DL, ML, BL, SL, and workstation-class platforms. HPE documentation also lists this drive in configurations associated with HPE server products.

Compatibility listings from hardware references include platforms such as:

• ProLiant DL360 G4p through DL360 G7
• ProLiant DL380 G4 through DL380 G7
• ProLiant DL385 and DL585 families
• ProLiant DL580 G3 through G7
• ProLiant BL460c, BL465c, BL620c, BL680c and BL685c families
• Selected ML-series systems
• Selected SL-series systems

Third-party compatibility references specifically identify 785407-001 as a spare part associated with 785099-B21 and describe it as a 300GB 15K, 2.5-inch, 12Gbps SAS enterprise drive intended for Gen7 or earlier models.

Because server compatibility can depend on the installed backplane, controller, firmware, carrier, and configuration, the exact HPE server model should be verified before purchasing.

Storage Array Applications

Enterprise Storage Expansion

The HPE 785099-B21 is also documented in HPE storage configurations. HPE's D2000 Disk Enclosure documentation lists the 785099-B21 as a supported 300GB 12G SAS 15K RPM SFF Enterprise drive.

This makes the drive relevant for compatible HPE storage expansion environments as well as individual server deployments.

RAID Storage Configurations

Multiple enterprise SAS hard drives can be combined through a compatible Smart Array or storage controller to create RAID configurations.

Depending on the selected RAID level, organizations can prioritize different combinations of:

• Storage capacity
• Read and write performance
• Fault tolerance
• Drive redundancy
• Recovery characteristics

The 785099-B21's 15K RPM mechanism makes it particularly suited to storage configurations where random disk performance is more important than maximizing raw capacity.

Enterprise Workloads

Database Servers

Database systems frequently perform many small and random disk operations. The fast rotational speed of the 785099-B21 can make it a useful option for compatible database server environments where mechanical storage remains appropriate.

Examples include transactional databases, business applications, inventory systems, and legacy database platforms.

Virtualization

Virtualized environments can generate substantial random I/O because multiple virtual machines may access the same physical storage simultaneously.

A 15K SAS drive can be useful in smaller or legacy virtualization deployments, particularly where existing HPE infrastructure already uses SAS HDDs.

However, modern virtualization environments with very demanding I/O requirements may benefit from SSD-based storage instead.

Application and File Servers

The drive can also be used in compatible application servers, file servers, and other enterprise systems that require reliable local storage.

Its 300GB capacity is relatively modest by modern standards, but it can be useful when capacity requirements are controlled and fast mechanical disk access is more important than storing large volumes of data.

Reliability and Enterprise Design

Built for Server Environments

Enterprise hard drives are designed for operating conditions different from typical consumer desktop drives. Server storage can experience continuous operation, frequent I/O activity, multiple-drive vibration, and demanding workloads.

The 785099-B21 belongs to HPE's Enterprise HDD category, rather than its consumer-oriented storage range. HPE documentation identifies it as an Enterprise 15K SFF SAS drive.

Hot-Plug Considerations

This family of HPE server drives is used in hot-plug server storage configurations. However, hot-plug functionality depends on the particular HPE server, drive cage, backplane, and controller.

Users should verify that the target system supports hot-plug replacement before attempting to remove or install a drive while the server is operating.

300GB Capacity for Focused Enterprise Storage

Why Choose 300GB?

A 300GB hard drive may seem small compared with today's multi-terabyte storage devices, but capacity is only one consideration in enterprise storage.

For legacy servers, RAID arrays, operating-system volumes, databases, and dedicated application storage, a 300GB 15K SAS drive can still be useful.

Its smaller capacity can also make it practical for replacing a failed member of an existing RAID array where maintaining matching or compatible drive characteristics is important.

Capacity Versus Performance

The 785099-B21 prioritizes performance over maximum capacity. A 15K RPM 300GB HDD is aimed at workloads that can benefit from faster mechanical response rather than applications requiring large amounts of inexpensive storage.

For bulk file storage, backup repositories, archives, or media libraries, higher-capacity 7.2K RPM drives may provide better capacity economics.

HPE 785099-B21 vs. Other SAS Drives

15K RPM vs. 10K RPM

The major distinction between the 785099-B21 and many 10K SAS enterprise drives is rotational speed.

A 15K RPM drive generally offers lower rotational latency, which can benefit random-access workloads. A 10K drive may offer greater capacity in some product generations while still delivering strong enterprise performance.

The appropriate choice depends on workload requirements, available drive bays, RAID configuration, and controller compatibility.

HDD vs. Enterprise SSD

Enterprise SSDs can provide dramatically lower latency and higher I/O performance than mechanical HDDs. Nevertheless, HDDs remain relevant for legacy infrastructure, capacity-oriented storage, and environments where replacing the existing storage architecture is unnecessary or cost-prohibitive.

The 785099-B21 is therefore best understood as a performance-oriented enterprise HDD for compatible HPE infrastructure, rather than a modern replacement for high-performance SAS SSDs.

Installation and Compatibility Considerations

Verify the Server Before Installation

Before purchasing an HPE 785099-B21, check the following:

• Exact HPE server or storage enclosure model
• Supported drive interface
• SFF drive-bay compatibility
• SAS controller compatibility
• Drive carrier requirements
• RAID controller support
• Firmware requirements
• Existing RAID configuration
• Required capacity and performance
• Whether the system supports hot-plug operation

This is especially important when upgrading older ProLiant servers because a physically compatible drive is not automatically guaranteed to be supported by every controller or backplane.

Check the Existing RAID Array

If the drive is being purchased as a replacement, match the replacement drive carefully with the existing array requirements.

A failed RAID member should generally be replaced according to the controller manufacturer's supported drive specifications. After installation, the RAID controller may need to rebuild the array, and rebuild times can vary significantly depending on drive capacity, array size, controller settings, and workload.

Why the HPE 785099-B21 Remains Useful for Legacy Infrastructure

Extending the Life of Existing Servers

Many organizations continue to operate older ProLiant servers because they perform stable, specialized, or legacy applications. Replacing a failed hard drive can extend the useful life of such systems without requiring a complete platform migration.

The 785099-B21 provides a targeted replacement option for compatible HPE environments.

Maintaining Consistent Storage Configurations

Using compatible enterprise drives can also help organizations maintain consistency across existing storage arrays. Matching drive characteristics can simplify maintenance and reduce compatibility uncertainty during hardware replacement.

Conclusion

The HPE 785099-B21 300GB 15000RPM 2.5-inch SFF SAS-12Gbps Enterprise Hard Drive is a compact, high-speed mechanical storage solution designed for compatible HPE server and storage environments.

With 300GB capacity, 15,000 RPM rotational speed, 12Gbps SAS connectivity, SFF construction, and enterprise-class design, it is particularly suited to performance-focused legacy server workloads, database applications, virtualization environments, RAID arrays, and compatible HPE storage enclosures.

HPE's own documentation confirms the 785099-B21 as a 300GB 12G SAS 15K RPM SFF Enterprise drive, while HPE storage documentation lists it among supported drives for D2000 storage enclosures.

For organizations maintaining compatible ProLiant Gen1 through Gen7-era infrastructure, the HPE 785099-B21 can provide a practical way to replace failed storage, expand an existing configuration, or maintain established enterprise storage architecture without replacing the entire server platform.
