Unleashing Enterprise Excellence: The HPE 800GB SAS-12Gbps SSD Powerhouse for ProLiant Gen8/Gen9 Servers

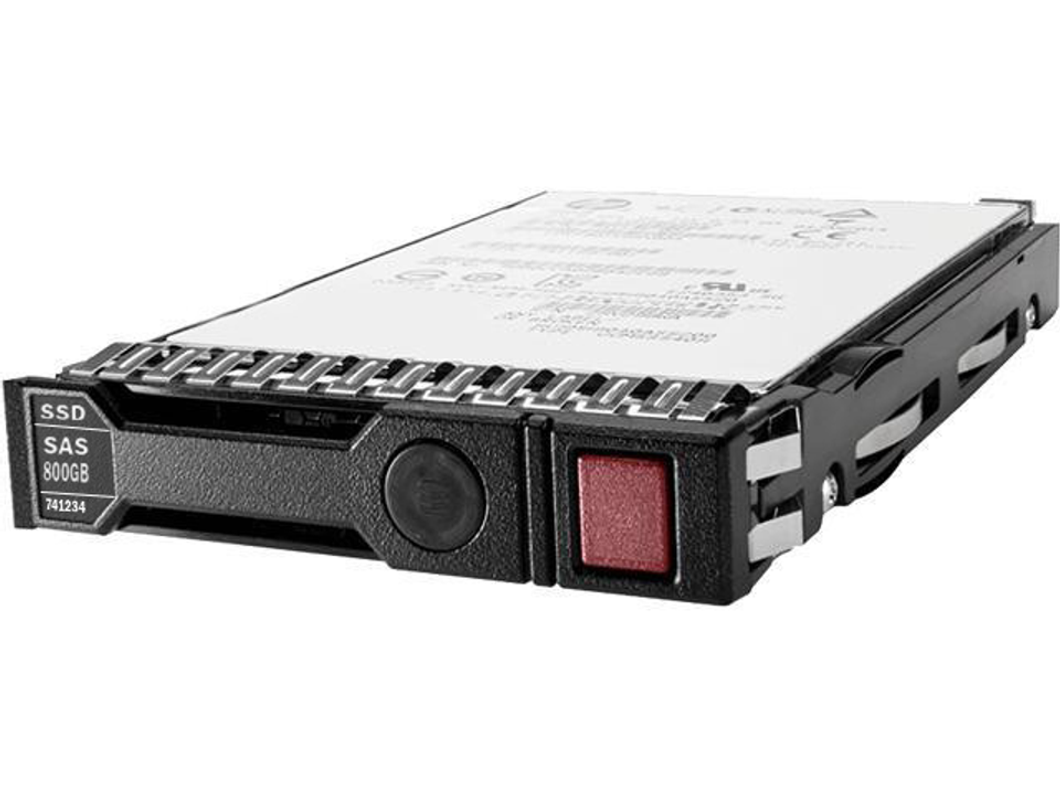

HPE 800GB 2.5-Inch SFF High Endurance SAS-12Gbps Smart Carrier SSD: A Comprehensive Guide for ProLiant Gen8 and Gen9 Servers

Introduction

The HPE 800GB 2.5-inch Small Form Factor (SFF) High Endurance SAS-12Gbps Smart Carrier Enterprise Performance Solid State Drive (SSD) is a high-performance storage solution engineered for HPE ProLiant Gen8 and Gen9 servers. Designed to meet the demands of enterprise environments with write-intensive workloads, this SSD delivers exceptional speed, reliability, and advanced features such as Power Loss Protection (PLP) and Smart Carrier technology. This article provides a detailed exploration of the SSD’s specifications, features, benefits, compatibility, and ideal use cases, offering IT professionals a comprehensive resource for evaluating and deploying this storage solution.

Specifications and Technical Details

Key Specifications

The HPE 800GB SSD is optimized for enterprise performance, with the following technical specifications:

Capacity: 800 GB

Form Factor: 2.5-inch Small Form Factor (SFF)

Interface: SAS-12Gbps, providing up to 12 Gb/s data transfer rate

NAND Flash Type: Multi-Level Cell (MLC)

Endurance: High Endurance, rated for up to 25 Drive Writes Per Day (DWPD)

Sequential Read/Write Speeds: Up to 1000 MB/s read and 560 MB/s write

Random Read/Write IOPS: 87,000 read and 73,000 write

Logical Blocks: 512 bytes

Height: 15 mm (0.6 inch)

Carrier Type: HPE Smart Carrier (SC)

Plug Type: Hot-Pluggable

Power Consumption: Idle: 2.07 W, Max: 9.00 W

Features: Power Loss Protection, Digitally Signed Firmware, TRIM Support

These specifications highlight the SSD’s ability to deliver high-speed performance and exceptional durability for write-intensive enterprise applications.

Performance Metrics

The SAS-12Gbps interface offers twice the bandwidth of SATA-6Gbps drives, ensuring faster data transfers and reduced latency. The SSD’s high random read and write IOPS make it ideal for applications requiring frequent small data accesses, such as transactional databases and virtualized environments. Its sequential read and write speeds enhance performance for large data transfers, supporting high-throughput workloads like big data analytics.

Key Features and Technologies

Smart Carrier Technology

The HPE Smart Carrier provides an intuitive interface for monitoring drive status and health. Equipped with LED icons and a spinning activity ring, it displays real-time system status, simplifying maintenance. The “do not remove” button prevents accidental removal during operation, reducing the risk of data loss. Integration with HPE’s Integrated Lights-Out (iLO) management tools enables predictive analytics, allowing IT teams to proactively address potential issues and ensure high availability.

Power Loss Protection (PLP)

PLP safeguards data integrity during unexpected power outages by using onboard capacitors to complete pending write operations. This feature is critical for mission-critical applications where data loss could have significant consequences, ensuring reliability in high-pressure environments.

Digitally Signed Firmware

The SSD’s digitally signed firmware enhances security by protecting against unauthorized access and firmware tampering. This feature ensures the drive operates with verified software, reducing the risk of data breaches and maintaining compliance with enterprise security standards.

High Endurance Design

With an endurance rating of 25 DWPD, the SSD is built for write-intensive workloads, offering consistent performance over its lifespan. This durability reduces the need for frequent replacements, lowering total cost of ownership (TCO) for enterprises.

Benefits for Enterprise Environments

Enhanced Performance

The SSD’s high IOPS and low latency significantly improve application responsiveness, enhancing user experience in performance-sensitive applications. Its SAS-12Gbps interface ensures rapid data access, making it suitable for high-throughput workloads such as databases, virtualization, and high-performance computing (HPC).

Reliability and Data Integrity

The combination of MLC flash, PLP, and digitally signed firmware ensures long-term reliability and data protection. The SSD’s high endurance rating supports consistent performance under demanding conditions, minimizing downtime and maintaining operational continuity.

Scalability and Flexibility

The 2.5-inch SFF form factor enables high-density storage configurations, allowing more drives to be installed in a single server chassis. This scalability is ideal for growing businesses requiring flexible storage solutions. The SSD’s hot-swap capability supports drive replacement or upgrades without server downtime, ensuring continuous operation in data centers.

Energy Efficiency

Despite its high performance, the SSD operates with low power consumption, ranging from 2.07 W at idle to 9.00 W at maximum. This efficiency reduces energy costs in data centers, contributing to a lower TCO and supporting sustainability initiatives.

Compatibility with HPE ProLiant Servers

Supported Server Models

The HPE 800GB SSD is compatible with a wide range of HPE ProLiant Gen8 and Gen9 servers, including but not limited to:

DL Series: DL160 Gen8/Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen8/Gen9, DL560 Gen8

ML Series: ML150 Gen9, ML350 Gen9

BL Series: BL420c Gen8, BL460c Gen8/Gen9

SL Series: SL230s Gen8/Gen9, SL250s Gen8/Gen9, SL270s Gen8/Gen9

XL Series: XL170r Gen9, XL190r Gen9, XL220a Gen9, XL230a Gen9, XL250a Gen9

WS Series: WS460c Gen8/Gen9

The SSD also supports HPE Synergy systems, enhancing its applicability in converged infrastructure environments. For precise compatibility, IT administrators should consult HPE’s documentation or contact their vendor, as some models may require specific firmware updates or RAID controller configurations.

Backward Compatibility

The SSD is backward compatible with SAS-6Gbps controllers, allowing it to be deployed in older Gen8 servers while still delivering improved performance over traditional HDDs. This flexibility makes it a versatile option for organizations with mixed server generations.

Ideal Use Cases

Transactional Databases

The SSD’s high random read and write IOPS (87,000 and 73,000, respectively) make it ideal for transactional databases requiring frequent small data accesses. Its low latency ensures fast query processing, improving database performance and supporting real-time applications.

Virtualization

In virtualized environments, the SSD’s high IOPS and fast data access speeds enhance virtual machine performance, reducing latency and improving resource utilization. Its high endurance supports the write-intensive nature of virtualized workloads, ensuring reliability.

High-Performance Computing (HPC)

The SSD’s sequential read and write speeds make it suitable for HPC applications requiring large data transfers, such as scientific simulations and modeling. Its reliability and scalability support the demanding storage needs of HPC environments.

Big Data Analytics

For big data analytics, the SSD’s high-throughput SAS-12Gbps interface and sequential performance enable rapid processing of large datasets. Its durability ensures consistent performance during intensive analytics workloads.

Deployment and Management

Installation

The SSD’s hot-pluggable design and Smart Carrier simplify installation, allowing drives to be inserted or removed without powering down the server. This feature minimizes disruptions in data center operations. IT teams should ensure the server’s RAID controller and firmware are compatible with the SSD for optimal performance.

Management Tools

HPE’s iLO management tools provide comprehensive monitoring and management capabilities, including drive health, wear status, and predictive analytics. The SmartSSD Wear Gauge feature tracks SSD lifespan, enabling proactive maintenance to prevent failures. These tools enhance operational efficiency and reduce administrative overhead.

Comparison with Other Storage Options

SAS vs. SATA SSDs

Compared to SATA-6Gbps SSDs (e.g., HPE 718139-001 800GB SATA-6Gbps), the SAS-12Gbps interface offers double the bandwidth, lower latency, and better error recovery via SCSI commands. While SATA SSDs are cost-effective for read-intensive workloads, the HPE 800GB SAS SSD is better suited for write-intensive enterprise applications requiring high performance and reliability.

SSD vs. HDD

Compared to traditional HDDs (e.g., HPE 1.2TB 10K RPM SAS-12Gbps), the SSD delivers significantly higher IOPS, lower latency, and better power efficiency. While HDDs offer larger capacities at a lower cost per GB, the SSD’s performance and endurance make it the preferred choice for mission-critical workloads.

Conclusion

Summary

The HPE 800GB 2.5-inch SFF High Endurance SAS-12Gbps Smart Carrier Enterprise Performance SSD is a robust and versatile storage solution for HPE ProLiant Gen8 and Gen9 servers. With its high-performance SAS-12Gbps interface, advanced features like Power Loss Protection and Smart Carrier technology, and exceptional endurance, it delivers the speed, reliability, and manageability required for enterprise workloads. Its compatibility with a wide range of servers and support for mission-critical applications make it a strategic investment for modern data centers.

Final Thoughts

For organizations seeking to enhance server performance, reduce latency, and ensure data integrity, the HPE 800GB SSD offers a compelling solution. By leveraging HPE’s management tools and verifying compatibility, IT teams can deploy this SSD to optimize their infrastructure, supporting demanding applications like databases, virtualization, HPC, and analytics. Its combination of performance, durability, and efficiency positions it as a valuable asset for enterprise storage upgrades.
