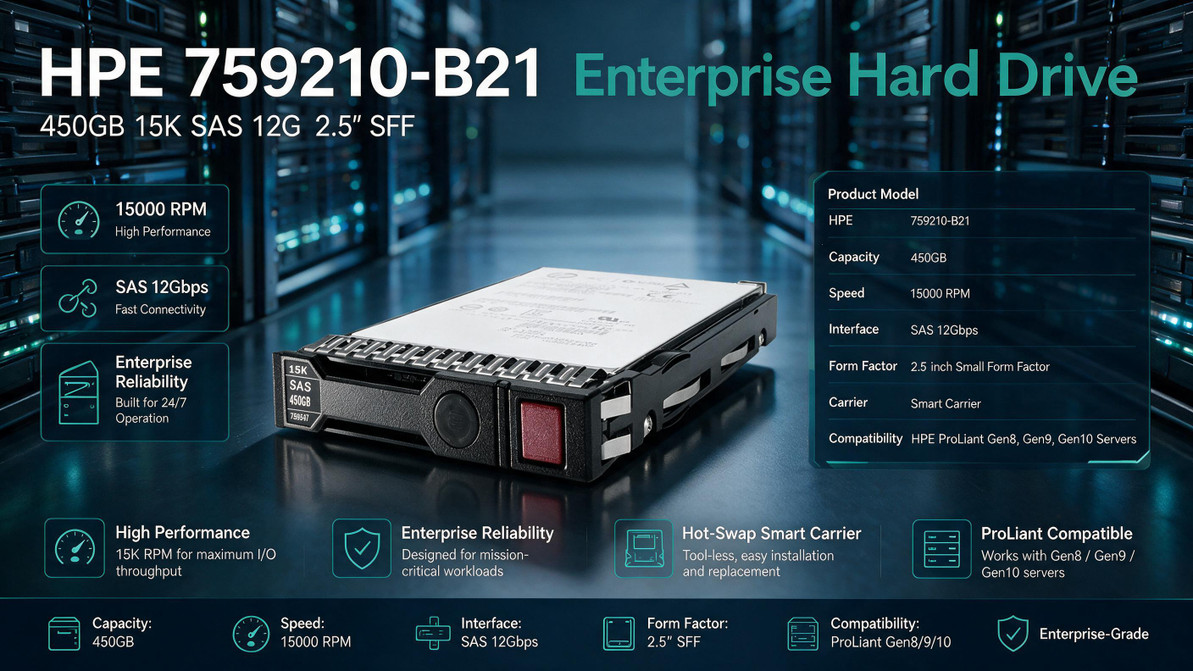

Built to Keep Servers Moving: The HPE 759210-B21 450GB 15K SAS Powerhouse

HPE 759210-B21 450GB 15000RPM SAS Hard Drive: High-Speed Enterprise Storage for ProLiant Servers

The HPE 759210-B21 450GB 15000RPM 2.5-inch Small Form Factor SAS-12Gbps Smart Carrier Enterprise Hard Drive is a performance-focused storage solution designed for demanding HPE server environments. Combining a high-speed 15,000 RPM spindle, 12Gbps SAS interface, compact 2.5-inch Small Form Factor design, and HPE Smart Carrier technology, this enterprise hard drive is built for workloads where fast mechanical storage and dependable server integration matter.

HPE identifies part number 759210-B21 as a 450GB 12G SAS 15K RPM SFF Smart Carrier Enterprise hard drive. According to HPE's official QuickSpecs, the drive provides a maximum synchronous transfer rate of 12Gbps, a typical average read seek time of 2.9 ms, and a rotational speed of 15,000 RPM. HPE also specifies 512-byte sectors and a physical height of 15.6 mm.

For organizations maintaining HPE ProLiant Gen8, Gen9, or selected Gen10 infrastructure, the HPE 759210-B21 can be an attractive replacement or expansion drive when compatibility, performance, and enterprise-grade SAS connectivity are priorities.

HPE 759210-B21 at a Glance

Key specifications

The HPE 759210-B21 combines several important enterprise storage technologies into a compact server-ready package. It is a 450GB SAS hard drive operating at 15,000 RPM with a 12Gbps SAS interface and 2.5-inch Small Form Factor chassis.

Its key specifications include a formatted capacity of approximately 450GB, a maximum synchronous SAS transfer rate of 12Gbps, 15,000 RPM rotational speed, 512-byte sectors, and an average read seek time of 2.9 ms. HPE lists the physical dimensions as approximately 15.6 mm high, 75.7 mm wide, and 118.7 mm deep.

The drive is also classified as an Enterprise model and uses an HPE Smart Carrier, making it suitable for compatible HPE server drive bays designed for SmartDrive SFF storage devices.

Why 15,000 RPM Matters in Server Storage

Designed for fast mechanical storage

One of the most important characteristics of the HPE 759210-B21 is its 15,000 RPM rotational speed. Traditional mechanical hard drives need to physically position their read/write heads over the correct area of the platter before accessing data. Increasing spindle speed reduces rotational latency and can improve responsiveness for workloads involving frequent random access.

A 15K RPM enterprise HDD is therefore considerably different from a typical 5,400 RPM or 7,200 RPM desktop hard drive. It is designed for environments where storage responsiveness is more important than simply maximizing capacity.

The HPE specification lists a typical single-track seek time of 0.15 ms, an average read seek time of 2.9 ms, and a full-stroke seek time of 5.9 ms.

This makes the 759210-B21 particularly interesting for server workloads that perform frequent reads and writes rather than simply storing large quantities of infrequently accessed data.

12Gbps SAS Connectivity for Enterprise Servers

More than just interface speed

The HPE 759210-B21 uses a 12Gbps SAS interface, commonly referred to as SAS-3. The interface provides a high-speed connection between the drive and the server's compatible SAS controller or storage infrastructure.

It is important to understand that 12Gbps represents the maximum synchronous interface transfer rate rather than a guarantee that the mechanical drive will continuously deliver 12Gbps of real-world data throughput. The physical limitations of a spinning HDD mean that actual application performance depends on factors such as workload, access pattern, controller configuration, RAID level, queue depth, and the overall storage subsystem.

HPE specifically notes that the drive, HBA or controller, firmware, and server backplane need to operate at compatible transfer rates. If the components cannot operate at the same rate, the system bandwidth can be negotiated down to an appropriate level.

2.5-Inch Small Form Factor Design

Higher storage density inside server chassis

The 2.5-inch Small Form Factor (SFF) design is another important advantage of the HPE 759210-B21. SFF drives allow compatible servers to accommodate multiple storage devices within a relatively compact chassis.

This is especially useful in rack servers where physical space is limited and administrators need to balance storage capacity with compute and networking hardware.

The drive measures approximately 2.98 inches wide, 4.67 inches deep, and 0.62 inches high according to HPE's published specifications.

Its SFF format also makes it suitable for HPE ProLiant systems that use compatible 2.5-inch SmartDrive bays.

HPE Smart Carrier Technology

Simplifying server drive management

The Smart Carrier is more than a physical mounting frame. HPE's SmartDrive ecosystem is designed to make storage devices easier to install, identify, monitor, and service within supported server platforms.

For administrators managing multiple drives inside a server, identifying the status of individual storage devices can be important during maintenance and troubleshooting. SmartDrive systems provide drive status and management information through the server's hardware management infrastructure.

The 759210-B21 is officially categorized by HPE as a Smart Carrier SFF enterprise drive, and HPE documentation lists it among the 12G SAS Hot Plug SmartDrive SFF enterprise options.

Enterprise-Class SAS Storage for ProLiant Servers

Built for demanding workloads

Unlike many consumer hard drives, enterprise SAS HDDs are intended for server and storage environments where the drive can be accessed continuously and simultaneously by multiple applications.

The HPE 759210-B21 belongs to HPE's Enterprise 12G SAS 15K RPM SFF drive family. HPE documentation describes these drives as options for enterprise server environments, including systems where high workloads and mission-critical applications are expected.

This makes the drive a logical choice for organizations maintaining compatible HPE infrastructure and looking for a fast mechanical storage option for active workloads.

HPE 759210-B21 for ProLiant Gen8 Servers

Extending the useful life of established servers

The HPE 759210-B21 is well suited to many compatible ProLiant Gen8 configurations. HPE documentation for the ProLiant DL580 Gen8, for example, lists the 759210-B21 as an available 450GB 12G SAS Enterprise 15K RPM SFF Smart Carrier hard drive.

This is particularly useful for businesses that continue to operate Gen8 servers because of existing software compatibility, virtualization deployments, legacy applications, or budget considerations.

Replacing failed disks with the same enterprise-class drive specification can be preferable to making an unnecessary server-wide hardware change.

HPE 759210-B21 for ProLiant Gen9 Servers

A strong match for Gen9 storage configurations

The HPE 759210-B21 was also offered across a broad range of ProLiant Gen9 systems. HPE's documentation for the ProLiant DL388 Gen9 lists the 450GB 12G SAS 15K RPM SFF Smart Carrier Enterprise drive under part number 759210-B21.

HPE documentation for other Gen9 platforms also lists the same drive, demonstrating its position within the company's enterprise storage portfolio for this generation of ProLiant servers.

For Gen9 administrators, the 759210-B21 can therefore serve as a replacement drive, RAID member, or additional storage device when the exact server configuration supports it.

HPE 759210-B21 for Selected Gen10 Servers

Compatibility with newer ProLiant platforms

Although the drive belongs to a storage family introduced around the Gen8 and Gen9 era, HPE's Gen10 documentation also lists 759210-B21 as a supported drive option for selected Gen10 platforms.

For example, HPE's QuickSpecs for the ProLiant BL460c Gen10 lists the HPE 450GB SAS 12G Enterprise 15K SFF Smart Carrier HDD with part number 759210-B21.

HPE documentation for the ProLiant XL230k Gen10 similarly lists the 759210-B21 among its Enterprise 12G SAS SFF drive options.

This demonstrates that the drive can remain relevant when upgrading or maintaining certain newer HPE server configurations. However, compatibility should always be checked against the exact server model, backplane, controller, firmware, and drive configuration before installation.

Ideal Workloads for the HPE 759210-B21

Database and transactional applications

The combination of 15K RPM rotational speed and enterprise SAS connectivity makes the HPE 759210-B21 particularly suitable for workloads that perform frequent storage operations.

Database environments can benefit from fast mechanical storage when applications repeatedly access relatively small amounts of data. Transaction processing systems, application servers, and other workloads with frequent random I/O can also make effective use of high-speed enterprise HDDs.

The drive is not intended to compete with modern NVMe SSDs for ultra-low latency, but it can provide a practical high-performance HDD option for established SAS server infrastructure.

Virtualization environments

Virtualization servers often generate mixed storage workloads because several virtual machines may access the same storage subsystem simultaneously.

A 15K RPM SAS drive can provide better mechanical responsiveness than slower enterprise HDDs, making it suitable for certain virtualization deployments where SSD or NVMe storage is not required or is outside the available budget.

For larger virtualization environments, multiple 759210-B21 drives can be combined through an appropriate RAID configuration to improve availability and aggregate performance.

Operating system and application volumes

The 450GB capacity can also be useful for server operating system installations, application volumes, database partitions, and other relatively active storage requirements.

Its relatively modest capacity is less important when the objective is fast mechanical access rather than maximum storage density.

RAID and Storage Array Applications

Building redundant storage

The HPE 759210-B21 can be used as part of an appropriately configured RAID array in supported HPE server environments.

RAID allows multiple physical drives to function together as a logical storage system. Depending on the RAID level, administrators can prioritize redundancy, performance, capacity, or a combination of these characteristics.

RAID 1 can provide disk mirroring, while RAID 5 and RAID 6 use parity to provide protection against drive failures. RAID 10 combines mirroring and striping and can be attractive when both performance and redundancy are important.

The correct RAID configuration depends on the number of drives, workload characteristics, acceptable risk, performance requirements, and recovery strategy. RAID should also never be treated as a replacement for a separate backup.

Hot-Plug Convenience

Simplifying maintenance in compatible servers

The HPE 759210-B21 belongs to HPE's hot-plug SmartDrive SFF enterprise drive category. This can make drive replacement considerably easier in compatible server configurations.

Hot-plug storage allows an administrator to replace a failed or degraded drive without necessarily shutting down the entire server, provided that the server, backplane, controller, RAID configuration, operating system, and maintenance procedure support hot replacement.

For businesses operating around the clock, this capability can reduce maintenance windows and help improve overall service availability.

450GB Capacity for Practical Enterprise Deployments

Balancing performance and usable storage

A 450GB capacity may seem modest compared with today's multi-terabyte HDDs and SSDs, but capacity is only one part of a server storage decision.

The HPE 759210-B21 is designed around high mechanical performance rather than maximum capacity. Its 15K RPM spindle speed makes it more appropriate for active workloads where storage responsiveness matters.

This can be particularly useful when an existing server or RAID array has been designed around 300GB, 450GB, or 600GB enterprise drives and administrators need a compatible replacement with similar performance characteristics.

HPE 759210-B21 Versus 10K RPM SAS Drives

Choosing speed over capacity

Within the enterprise HDD market, 10K RPM and 15K RPM drives represent different performance and capacity priorities.

A 10K RPM SAS drive can provide a useful balance between capacity, performance, power consumption, and cost. A 15K RPM model such as the 759210-B21 places greater emphasis on rotational performance and lower mechanical latency.

HPE's own product range included both 15K RPM and 10K RPM 12G SAS SFF drives. For example, HPE lists 1.2TB, 900GB, 600GB, and 300GB 10K RPM options alongside the 450GB 15K RPM 759210-B21.

If the workload is heavily dependent on random I/O and the infrastructure is designed around high-speed mechanical disks, the 15K RPM option can be attractive. If capacity is the priority, a 10K RPM drive may offer more storage per drive.

HPE 759210-B21 Versus SSD Storage

Understanding the role of mechanical enterprise drives

Modern SSDs and NVMe drives provide dramatically lower latency than mechanical HDDs. For extremely demanding databases, virtualization platforms, analytics, and high-performance applications, SSD or NVMe storage can therefore be a better choice.

However, replacing an entire SAS HDD infrastructure with SSD or NVMe storage is not always practical. Existing servers may have SAS backplanes, SAS RAID controllers, legacy applications, or storage architectures designed around enterprise HDDs.

In those situations, the HPE 759210-B21 provides a way to maintain a high-performance mechanical storage environment without immediately redesigning the entire storage architecture.

Installation and Compatibility Considerations

Verify the server before purchasing

The part number alone should not be the only consideration when purchasing a replacement drive. Administrators should verify the exact HPE server model and configuration.

The server should have a compatible 2.5-inch SFF drive bay, appropriate SAS backplane, supported SAS controller or HBA, and compatible firmware. The existing RAID array should also be checked to ensure the replacement drive meets the required capacity and sector format.

HPE documentation confirms that the 759210-B21 is a 512-byte-sector drive.

It is also important to distinguish between standard 512-byte-sector drives and 512e enterprise drives when building or expanding arrays, particularly when mixing drives.

Important SAS Compatibility Considerations

The controller and backplane matter

A 12Gbps SAS drive does not automatically operate at 12Gbps simply because it is installed in a server with a SAS controller.

The controller, backplane, firmware, cabling, and other components must support the required SAS generation. HPE specifically notes that storage subsystem components negotiate transfer rates according to the capabilities of the individual components.

Therefore, administrators should verify the complete storage path before expecting maximum interface performance.

Enterprise Reliability and Continuous Operation

Designed for server environments

Enterprise HDDs are designed differently from consumer desktop drives. Server storage can experience sustained workloads, frequent access, higher I/O queues, and continuous operation.

The HPE 759210-B21 belongs to HPE's Enterprise SAS HDD category and was offered with a three-year warranty in HPE's standard product specifications.

This positioning makes it appropriate for organizations that need server-oriented storage hardware rather than a conventional consumer hard drive.

Efficient Storage for Existing HPE Infrastructure

A practical upgrade and replacement option

One of the biggest advantages of the HPE 759210-B21 is its usefulness in established server environments.

Organizations frequently maintain older ProLiant servers for years because the systems continue to perform their assigned workloads reliably. Replacing a failed storage drive is often much less expensive and disruptive than replacing the entire server.

A compatible 450GB 15K RPM SAS SmartDrive can therefore be a practical choice for maintaining an existing HPE infrastructure while preserving the original storage architecture.

Who Should Consider the HPE 759210-B21?

A good choice for legacy and enterprise SAS environments

The HPE 759210-B21 is best suited to organizations running compatible HPE ProLiant and related enterprise platforms that need fast mechanical storage.

It is particularly appropriate when the environment already uses 12Gbps SAS, 2.5-inch SFF SmartDrive carriers, and enterprise-class RAID controllers.

It can be useful for database servers, transactional applications, virtualization hosts, application servers, operating system volumes, and other workloads that benefit from faster HDD response.

For new infrastructure where maximum storage performance is the goal, modern SSD or NVMe technology should also be considered. However, for compatible legacy HPE systems, the 759210-B21 remains a capable high-speed SAS HDD.

Final Thoughts on the HPE 759210-B21

A high-performance 15K RPM SAS drive for compatible HPE servers

The HPE 759210-B21 450GB 15000RPM 2.5-inch Small Form Factor SAS-12Gbps Smart Carrier Enterprise Hard Drive brings together the characteristics that made 15K RPM SAS drives popular in enterprise server environments: fast mechanical response, SAS connectivity, compact SFF construction, hot-plug capability, and HPE SmartDrive integration.

Its official specifications include approximately 450GB capacity, a 12Gbps SAS interface, 15,000 RPM rotational speed, 2.9 ms typical average read seek time, 512-byte sectors, and a compact 2.5-inch SFF form factor.

HPE documentation confirms the 759210-B21 as an enterprise storage option for multiple ProLiant platforms, including Gen8 and Gen9 systems, while HPE Gen10 documentation also lists it for selected systems such as the BL460c Gen10 and XL230k Gen10.

For businesses maintaining compatible HPE server infrastructure, the drive can be an effective replacement or expansion option when fast mechanical storage is required. Its 15K RPM performance makes it more responsive than slower enterprise HDDs, while its SAS interface and Smart Carrier design make it well suited to professional server environments.

Before purchasing, always verify the exact server model, drive bay, SAS controller, backplane, firmware, RAID configuration, and sector format. With the right configuration, the HPE 759210-B21 can provide a dependable and performance-oriented storage foundation for compatible HPE ProLiant servers.
