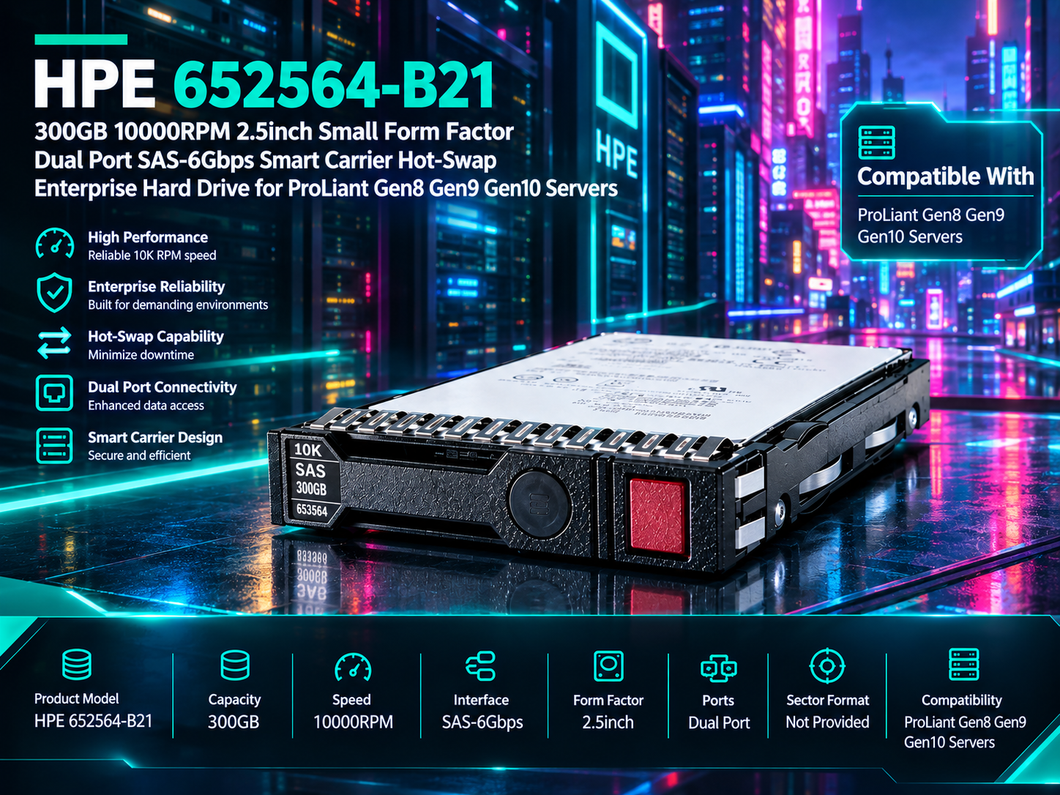

Powering Proven Performance: HPE 652564-B21 300GB 10K SAS Storage for Demanding ProLiant Servers

HPE 652564-B21 300GB 10000RPM SAS Hard Drive: Enterprise Storage for ProLiant Servers

The HPE 652564-B21 300GB 10000RPM 2.5-inch Small Form Factor Dual Port SAS-6Gbps Smart Carrier Hot-Swap Enterprise Hard Drive is designed for organizations that need dependable, high-speed mechanical storage in compatible HPE ProLiant server environments. With a 10,000 RPM rotational speed, 6Gbps SAS interface, 2.5-inch Small Form Factor design, and Smart Carrier configuration, this drive provides a practical storage option for enterprise workloads where performance, serviceability, and server integration are important.

HPE documentation identifies the 652564-B21 as a 300GB 6G SAS 10K rpm SFF (2.5-inch) Smart Carrier Enterprise hard drive. HPE's specifications list a maximum synchronous transfer rate of 6Gb/sec and a 512-byte sector configuration.

For businesses maintaining HPE ProLiant infrastructure, selecting the correct drive is about more than capacity. Interface generation, drive speed, form factor, carrier type, controller compatibility, and hot-plug support all need to match the existing server environment.

HPE 652564-B21 Key Specifications

Product Overview

The HPE 652564-B21 combines several enterprise storage characteristics in a compact 2.5-inch SFF package. Its principal specifications include:

HPE's QuickSpecs list the physical dimensions as approximately 15.6 mm high, 75.7 mm wide, and 118.7 mm deep. The same documentation specifies 300,000MB capacity, 10,000 RPM rotational speed, SAS interface, 6Gb/sec maximum synchronous transfer rate, and 512 bytes per sector.

300GB Capacity for Focused Enterprise Workloads

Practical Storage for Server Applications

The 300GB capacity of the HPE 652564-B21 makes it suitable for server environments where storage requirements are moderate and performance characteristics are more important than maximizing raw capacity.

Enterprise servers frequently divide storage into different tiers or dedicate individual drives to particular workloads. A 300GB 10K RPM SAS drive can therefore be used as part of a RAID configuration or a larger storage architecture where multiple drives collectively provide the required capacity and redundancy.

The drive can be particularly relevant for organizations maintaining existing server infrastructure that was designed around 2.5-inch SAS enterprise disks.

10,000 RPM Performance

Faster Rotational Speed for Responsive HDD Storage

One of the defining characteristics of the HPE 652564-B21 is its 10,000 RPM rotational speed. Compared with conventional 7,200 RPM hard drives, a 10K RPM enterprise HDD is designed around faster rotational operation, which can contribute to reduced mechanical access times.

HPE specifies a typical average seek time of 4.0 ms and a single-track seek time of 0.3 ms for this model.

For workloads involving frequent random access, databases, virtualization environments, transactional applications, and other server operations that repeatedly access relatively small amounts of data, seek performance can be an important consideration.

It is important to distinguish rotational speed from interface speed. The 10,000 RPM specification describes the mechanical rotation of the disk, while 6Gbps SAS describes the drive's interface capability. These specifications address different aspects of storage performance.

6Gbps SAS Interface

Enterprise Connectivity and Data Transfer

The HPE 652564-B21 uses a 6Gbps SAS interface, making it part of HPE's enterprise SAS hard drive family. SAS, or Serial Attached SCSI, is widely used in servers and storage systems because it is designed for enterprise storage environments and compatible with SAS controllers and backplanes.

HPE lists the maximum synchronous transfer rate of this drive at 6Gb/sec.

The interface should not be confused with actual sustained application throughput. Real-world performance depends on factors such as workload type, controller configuration, RAID level, queue depth, server hardware, and other components in the storage path.

Dual-Port SAS Design

Connectivity for Enterprise Storage Architectures

The product description identifies the HPE 652564-B21 as a dual-port SAS drive. Dual-port SAS is an important characteristic in enterprise storage because SAS architectures can provide more than one path between storage devices and the surrounding infrastructure when supported by the server or storage architecture.

However, dual-port functionality should always be considered alongside the specific controller, backplane, and server configuration. Simply installing a dual-port drive does not automatically create redundant storage paths.

For organizations upgrading or maintaining an existing HPE environment, checking the server's documented drive options and controller configuration is therefore essential.

2.5-Inch Small Form Factor Design

Compact Storage for Server Chassis

The HPE 652564-B21 uses a 2.5-inch Small Form Factor (SFF) design. SFF drives allow compatible server platforms to accommodate multiple drives within a relatively compact physical space.

HPE's specifications give the drive dimensions as approximately:

• Height: 0.62 inches / 15.6 mm
• Width: 2.98 inches / 75.7 mm
• Depth: 4.67 inches / 118.7 mm

This compact form factor is particularly useful in server configurations designed around SFF drive bays. Before purchasing a replacement drive, administrators should verify that the target server uses compatible 2.5-inch SFF drive bays and the appropriate SAS backplane.

Smart Carrier and Hot-Plug Convenience

Designed for Serviceable Server Storage

The HPE 652564-B21 belongs to HPE's Smart Carrier enterprise drive family. HPE documentation identifies the model as an SFF Smart Carrier drive.

A Smart Carrier helps integrate the physical drive with supported HPE server drive bays and provides an appropriate carrier design for supported systems.

The product is also commonly described as a hot-plug or hot-swap SAS hard drive. In compatible server configurations, hot-plug storage allows administrators to replace or service an individual drive without shutting down the entire server, subject to the server, controller, RAID configuration, and operating procedures.

This capability can be especially valuable in environments where maintaining service availability is important.

Enterprise-Class Storage Architecture

Built for Server Infrastructure

The HPE 652564-B21 is categorized by HPE as an Enterprise SAS hard drive rather than a consumer desktop HDD. HPE lists this model among its standard SAS hot-plug SFF enterprise drives.

Enterprise hard drives are commonly deployed in server environments where predictable storage behavior, compatibility with enterprise controllers, serviceability, and continuous operation are important considerations.

The drive can therefore serve as a replacement, expansion component, or additional storage device in compatible HPE server configurations.

HPE ProLiant Compatibility

Designed for Compatible HPE Server Platforms

HPE documentation lists the 652564-B21 among supported drive options for several ProLiant platforms. For example, HPE's ProLiant DL360 Gen9 documentation lists the HPE 300GB 6G SAS 10K rpm SFF 2.5-inch Smart Carrier Enterprise hard drive under its supported 6G SAS SFF enterprise drives.

HPE also lists the same drive for the ProLiant DL388 Gen9, DL580 Gen9, DL580 Gen8, DL560 Gen8, and ML350 Gen9 product families.

The exact compatibility of an individual drive depends on the server configuration, controller, backplane, firmware, and storage architecture. Therefore, administrators should verify the specific server model and configuration before installation.

Storage Controllers and RAID Environments

A Drive Is Only One Part of the Storage System

The HPE 652564-B21 does not operate in isolation in a typical enterprise server. Its performance and functionality depend on the complete storage architecture.

A compatible SAS controller or Smart Array controller communicates with the drive, while the server backplane provides the physical connection. In RAID configurations, multiple drives may be combined to provide redundancy, performance, or additional usable capacity.

For example, organizations may deploy several 300GB drives within a RAID configuration rather than relying on a single disk. The appropriate RAID level depends on the organization's requirements for capacity, redundancy, performance, and rebuild behavior.

Why 10K SAS HDDs Still Have a Role

A Useful Option for Existing Server Infrastructure

Modern NVMe SSDs can deliver substantially higher storage performance than mechanical hard drives, but that does not make older SAS HDDs irrelevant.

Many organizations continue operating established ProLiant servers because those systems remain suitable for their workloads. Replacing a failed drive with a compatible enterprise SAS HDD can be more practical than redesigning an entire storage platform.

The HPE 652564-B21 can therefore be relevant for:

• Maintaining existing ProLiant servers
• Replacing failed 300GB SAS drives
• Expanding compatible SFF drive configurations
• Supporting RAID arrays
• Maintaining legacy enterprise applications
• Server environments requiring 10K RPM SAS storage
• Infrastructure designed around 6Gbps SAS connectivity

HPE 652564-B21 vs. Consumer SATA Drives

Enterprise SAS and Server Storage Are Different

Although both SAS and SATA hard drives are mechanical storage devices, they are designed for different infrastructure environments.

The HPE 652564-B21 uses SAS and is specifically positioned within HPE's enterprise server storage ecosystem. SAS controllers, server backplanes, dual-port capabilities, and enterprise management features distinguish this type of storage from typical desktop SATA hard drives.

For a server originally designed around SAS storage, replacing a SAS enterprise drive with an unrelated consumer SATA model may introduce compatibility limitations.

The correct replacement should therefore be selected based on the server's supported drive list and controller requirements rather than capacity alone.

Installation Considerations

Verify the Server Before Installation

Before installing an HPE 652564-B21, administrators should confirm several important details.

First, verify that the server supports 2.5-inch SFF SAS drives. Next, confirm that the server backplane and storage controller support 6Gbps SAS drives and that the particular drive is listed as compatible.

If the drive is being used as a replacement inside an existing RAID array, the replacement drive should also meet the array's requirements. Administrators should follow the RAID controller's recommended replacement and rebuild procedure.

Check the Existing Drive Configuration

When replacing an existing drive, compare the following:

• Capacity
• Interface
• Rotational speed
• Form factor
• Carrier type
• Port configuration
• Controller compatibility
• RAID requirements
• Server generation
• Firmware requirements

Matching these characteristics helps reduce the risk of purchasing a physically compatible drive that is not appropriate for the actual storage configuration.

Reliability and Data Protection

RAID Is Not a Backup

Enterprise storage hardware can improve availability, but it should not be confused with data backup.

A RAID array can provide redundancy against certain types of drive failure, depending on the RAID level and configuration. However, RAID does not protect against every type of data loss.

Accidental deletion, malware, application errors, file corruption, controller problems, and other incidents can still affect data.

For important business information, the HPE 652564-B21 should therefore be considered as one component of a broader storage and data-protection strategy that includes appropriate backups.

HPE 652564-B21 Technical Summary

Main Specifications at a Glance

The most important characteristics of the HPE 652564-B21 can be summarized as follows:

Model: HPE 652564-B21
Capacity: 300GB
Rotational Speed: 10,000 RPM
Interface: SAS
Interface Speed: 6Gbps
Form Factor: 2.5-inch SFF
Carrier: Smart Carrier
Drive Class: Enterprise
Sector Size: 512 bytes
Maximum Synchronous Transfer Rate: 6Gb/sec
Typical Average Seek Time: 4.0 ms
Single-Track Seek Time: 0.3 ms
Full-Stroke Seek Time: 8.0 ms
Height: 0.62 inches / 15.6 mm
Width: 2.98 inches / 75.7 mm
Depth: 4.67 inches / 118.7 mm

Final Thoughts on the HPE 652564-B21

The HPE 652564-B21 300GB 10K RPM SAS hard drive is a compact enterprise storage solution designed around the needs of compatible HPE ProLiant server environments. Its combination of 300GB capacity, 10,000 RPM rotational speed, 6Gbps SAS connectivity, 2.5-inch SFF form factor, and Smart Carrier design makes it suitable for maintaining and supporting compatible enterprise server infrastructure.

Its strongest practical advantage is its combination of established SAS connectivity and enterprise-oriented server integration. For organizations operating compatible HPE ProLiant systems, it can provide a straightforward storage replacement or expansion option without moving to an entirely different storage architecture.

As with any enterprise hard drive, compatibility should be confirmed against the exact server, controller, backplane, and RAID configuration before installation. HPE's own documentation provides the most reliable starting point for confirming supported configurations.
