HPE P26290-X21 800GB 2.5in DS SAS 24G SC Mixed Use G9 G10 SSD
- In Stock - Ship Same Day

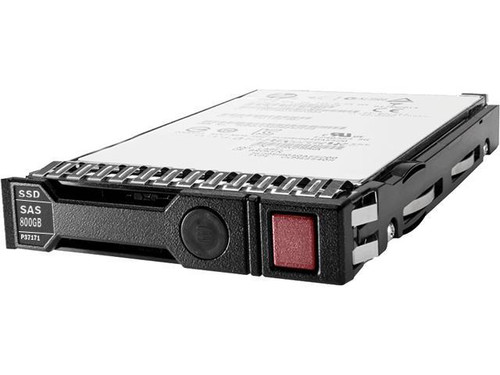

HPE P26290-X21 800GB 2.5inch Small Form Factor Digitally Signed Firmware SAS-24Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (New Sealed Spare with 1 Year Warranty)
HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE Smart SSD Wear Gauge, allowing you to determine if any drives are at risk of failure.
High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.
Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.
HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.
Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.
Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.
The HPE P26290-X21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 24 Gbps external data transfer rate. It has a 800 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SAS-24Gbps interface and has 1 Year Warranty.
Option Part Number: P26290-X21
Spare Part Number: P37171-001
Model Number: MO000800PXDBP
Assembly Number: P26294-001
Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
Form Factor: 2.5 inch SFF
Interface: SAS 24Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity Type: Dual
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Bundled with: HPE SmartDrive Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm(0.60 inch)
30 Days Writes (TB): 4280
Endurance DWPD (Drive Writes Per Day): 3.00
Drive Transfer Rate: 24 GBps (external)
MAX Seq. Reads Throughput (MiB/s): 1080
MAX Seq. Writes Throughput (MiB/s): 1035
Random Read Average Latency uSec (4KiB,Q1): 95
Random Write Average Latency uSec (4KiB,Q1): 32
Random Read IOPS (4KiB, Q=16): 150000
Random Write IOPS (4KiB, Q=16): 125000
MAX Random Read IOPS (4KiB): 173000@Q64
MAX Random Write IOPS (4KiB): 130000@Q4
Expansion & Connectivity
Interfaces: 1 x SAS 24 Gb/s
Compatible Bay: 2.5" SFF
Idle Time: 2.80 Watt
Random Read: 6.24 Watt
Random Write: 6.24 Watt
Sequential Read: 6.73 Watt
Sequential Write: 8.32 Watt
Random Read/Write: 6.24 Watt
Maximum: 8.32 Watt
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
HPE ProLiant Generation8 Generation9 Generation10 Servers
Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
