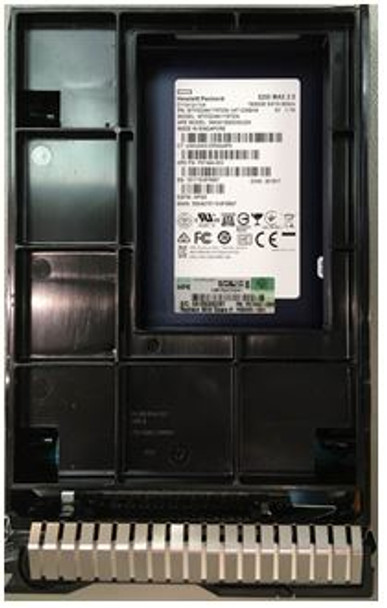

HPE P07932-B21 1.92TB 3.5in DS SATA 6G SCC Mixed Use G9 G10 SSD

HPE P07932-B21 1.92TB 3.5inch Large Form Factor (LFF Digitally Signed Firmware (DS) SATA-6Gbps Smart Carrier Converter Mixed Use Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (New Bulk Pack With 90 Days Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carrier Converters
HPE Hard Drives with Smart Carrier Converters are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE P07932-B21 Mixed Use Solid State Drive has a 3.5 inch form factor and a 6 Gbps external data transfer rate. It has a 1.92 TB capacity. This Large Form Factor Solid State Drive with Digitally Signed Firmware uses a SATA-6Gbps interface and has 90 Days Warranty.

Specification

Brand: HPE
MPN: P07932-B21

Option Part Number: P07932-B21
Spare Part Number: P08695-001
Model Number: MK001920GWUGK
Assembly Number: P07444-003

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier Converter (SCC)
Workload Type: Mixed Use
Bundled with: HPE Smart Carrier Converter (SCC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7.00 mm (0.3 inch)

Performance

30 Days Writes: 17500
Endurance DWPD (Drive Writes Per Day): 5
Drive Transfer Rate (External): 6 Gb/sec
Random Read IOPS (4KiB, Q=16): 59000
Max Random Read IOPS (4KiB): 62000@Q32
Random Write IOPS (4KiB, Q=16): 52500
Max Random Write IOPS (4KiB): 52000@Q16
MAX Seq Reads Throughput (MiB/s): 520
Max Seq Writes Throughput (MiB/s): 495
Random Read Avg. Latency uSec (4KiB,Q1): 125
Random Write Avg. Latency uSec (4KiB,Q1): 36

Expansion & Connectivity

Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 3.5" LFF

Power Consumption

Idle Time: 1.50 Watt
Random Read: 3.10 Watt
Random Write: 3.10 Watt
Sequential Read: 5.40 Watt
Sequential Write: 6.80 Watt
Random Read/Write: 3.10 Watt
Maximum: 6.80 Watt

Product Dimensions & Weight

Height: 5.63 inch (14.30 cm)
Width: 5.75 inch (14.61 cm)
Depth: 10.00 inch (25.4 cm)
Weight: 3 lbs (1.36 kg)

Compatibility Information

Designed For

HPE ProLiant DL Series: DL360 Gen10 Server for CTERA (3.5 inch), DL360 Gen9 (3.5 inch), DL360 Gen9 Base (3.5 inch), DL360 Gen9 CMS (3.5 inch), DL360 Gen9 Entry (3.5 inch), DL360 Gen9 Performance (3.5 inch), DL360 Gen9 Special Server (3.5 inch), DL380 Gen9 (3.5 inch), DL380 Gen9 Base (3.5 inch), DL380 Gen9 Entry (3.5 inch), DL380 Gen9 High Performance (3.5 inch), DL380 Gen9 Performance (3.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (3.5 inch), DL380 Gen9 Special (3.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
