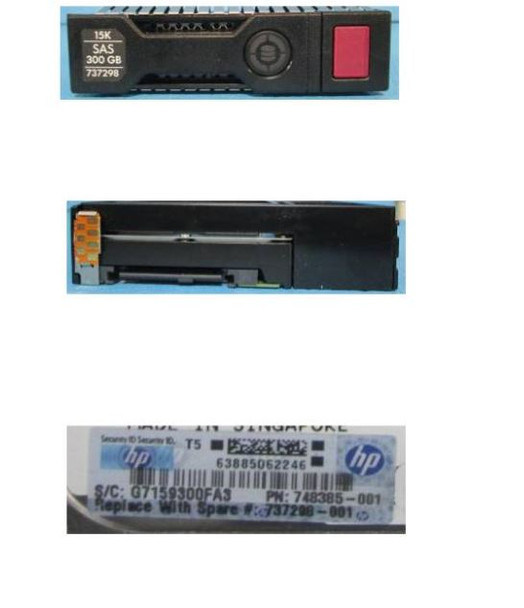

HPE 737298-001 300GB 15kRPM 3.5in SAS-12G SCC Enterprise G8 G9 HDD

HPE 737298-001 300GB 15000RPM 3.5inch Large Form Factor SAS-12Gbps Smart Carrier Converter Enterprise Hard Drive for ProLiant Gen8 Gen9 Servers (Brand New with 3 Years Warranty)

HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second, and accelerate data transfer (I/O) speeds. HPE Server Enterprise Hard Drives are backed by over 3.35 million hours of the industry’s most rigorous testing and qualification program, ensuring customers' reliable, rugged drives. The self-describing icons on the HPE Smart Carrier takes the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are ideal for transaction processing, database applications, Big Data analytics, and high-performance computing.
Broad portfolio of customized solutions provide up to 2.4 TB of storage.
Efficient drives provide power for space constrained data centers.
Latest 12G SAS interface for increased performance.
Stable and consistent portfolio of drives offering long life cycles and steady supply.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 737298-001 Enterprise Hard Drive has a 3.5 inch form factor and a 12 Gbps external data transfer rate. It has a spindle speed of up to 15000 RPM and a 300 GB capacity. This Large Form Factor Hard Drive uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: 737298-001

Option Part Number: 737261-B21
Spare Part Number: 737298-001
Model Number: EH0300JDXBA
Model Number: EH0300JDYTH
Model Number: EH0300JEDHC
Assembly Number: 744995-001
Assembly Number: 748385-001
Assembly Number: 759202-001

General

Device Type: Hard Drive - Hot-Swap
Capacity: 300 GB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Workload Type: Enterprise
Carrier Type: Smart Carrier Converter (SCC)
Bundled with: HPE Smart Carrier Converter

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Average Seek Time: 2.9 ms
Max Seek Time: 5.9 ms
Track-to-Track Seek Time: 0.15 ms
Spindle Speed: 15000 RPM

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF

Dimensions & Weight

Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch
Weight: 3.00 lbs

Miscellaneous

Compliant Standards: WEEE

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed for

HPE ProLiant DL Series: DL160 Gen8 (3.5 inch), DL160 Gen8 Base (3.5 inch), DL160 Gen8 Entry (3.5 inch), DL160 Gen8 Performance (3.5 inch), DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution (3.5 inch), DL320e Gen8 (3.5 inch), DL320e Gen8 Base (3.5 inch), DL320e Gen8 Entry (3.5 inch), DL320e Gen8 Performance (3.5 inch), DL320e Gen8 Special Server (3.5 inch), DL320e Gen8 v2 (3.5 inch), DL320e Gen8 v2 Base (3.5 inch), DL320e Gen8 v2 Performance (3.5 inch), DL360 Gen9 CMS (3.5 inch), DL360 Gen9 Entry (3.5 inch), DL360e Gen8 (3.5 inch), DL360e Gen8 Base (3.5 inch), DL360e Gen8 Entry (3.5 inch), DL360e Gen8 Performance (3.5 inch), DL360e Gen8 Special Server (3.5 inch), DL360p Gen8 Special Server (3.5 inch), DL380 Gen9 (3.5 inch), DL380 Gen9 Base (3.5 inch), DL380 Gen9 Entry (3.5 inch), DL380 Gen9 Performance (3.5 inch), DL380e Gen8 (3.5 inch), DL380e Gen8 Base (3.5 inch), DL380e Gen8 Entry (3.5 inch), DL380e Gen8 High Performance (3.5 inch), DL380e Gen8 Storage (3.5 inch), DL380p Gen8 (3.5 inch), DL380p Gen8 Base (3.5 inch), DL380p Gen8 Entry (3.5 inch), DL380p Gen8 High Performance (3.5 inch), DL380p Gen8 Performance (3.5 inch), DL380p Gen8 Special (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL80 Gen9 (3.5 inch), DL80 Gen9 Entry (3.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML30 Gen9 (3.5 inch), ML30 Gen9 Base (3.5 inch), ML30 Gen9 Performance (3.5 inch), ML310e Gen8 (3.5 inch), ML310e Gen8 Base (3.5 inch), ML310e Gen8 Entry (3.5 inch), ML310e Gen8 Performance (3.5 inch), ML310e Gen8 v2 (3.5 inch), ML310e Gen8 v2 Base (3.5 inch), ML310e Gen8 v2 Entry (3.5 inch), ML310e Gen8 v2 Performance (3.5 inch), ML350e Gen8 (3.5 inch), ML350e Gen8 Base (3.5 inch), ML350e Gen8 Entry (3.5 inch), ML350e Gen8 Performance (3.5 inch), ML350e Gen8 v2 (3.5 inch), ML350e Gen8 v2 Base (3.5 inch), ML350e Gen8 v2 Entry (3.5 inch), ML350p Gen8 (3.5 inch), ML350p Gen8 Base (3.5 inch), ML350p Gen8 Entry (3.5 inch), ML350p Gen8 Performance (3.5 inch), ML350p Gen8 Special Server (3.5 inch)

Contact us if you have any question about this product to verify the compatibility of this model with your current server or storage array.
