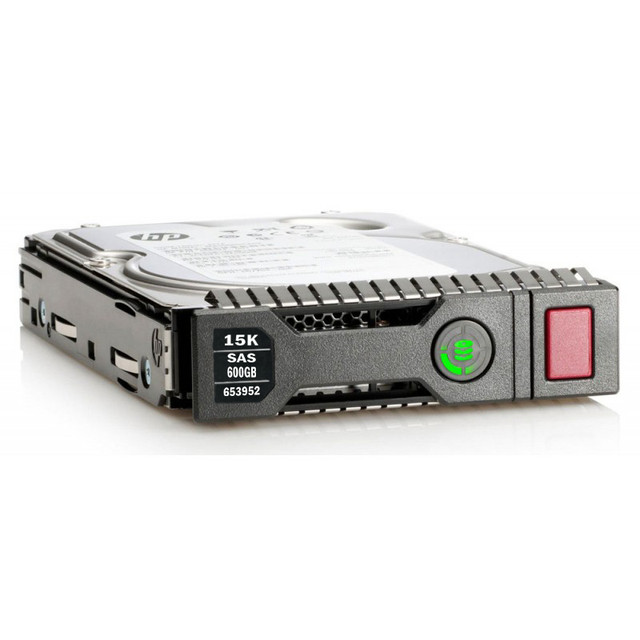

The Workhorse in a Smart Carrier: HPE 652620-B21 600GB 15K SAS-6Gbps Drive for ProLiant Gen8/Gen9

HPE 652620-B21 600GB 15000RPM 3.5-inch SAS-6Gbps Enterprise Hard Drive for ProLiant Gen8/Gen9 Servers

The HPE 652620-B21 is a 600GB enterprise-class SAS hard drive engineered for HPE ProLiant Gen8 and Gen9 servers. Built around a 15,000 RPM spindle and a 6Gbps dual-port SAS interface, this 3.5-inch Large Form Factor (LFF) drive is designed for IT teams that need dependable, high-throughput storage for transaction-heavy workloads, virtualization hosts, and mission-critical applications. In this guide, we break down everything you need to know about the 652620-B21, including its specifications, performance profile, server compatibility, and buying considerations.

Overview of the HPE 652620-B21 Hard Drive

The 652620-B21 belongs to HPE's Enterprise SAS hard drive family, a line purpose-built for always-on server environments where read/write consistency and uptime matter more than raw capacity. Unlike consumer or nearline SATA drives, this model uses 15K enterprise-grade platters paired with a SAS-6Gbps controller, giving it significantly better random I/O performance and a longer duty-cycle rating. It ships bundled with an HPE Smart Carrier (SC) tray, so it drops directly into supported ProLiant drive bays without needing a separate caddy purchase.

Because it is sold under the HPE option part number 652620-B21 and carries the spare part number 653952-001, it is easy to cross-reference against HPE's official parts catalog when ordering replacements, spares, or expansion drives for an existing fleet of servers.

Key Specifications at a Glance

Below is a quick-reference specification table for the HPE 652620-B21:

Design and Build Quality

HPE engineers the 652620-B21 for continuous enterprise duty rather than intermittent desktop use, which shows up in both its mechanical design and its carrier hardware.

Smart Carrier (SC) Tray

The drive is bundled with HPE's Smart Carrier tray, which includes activity and status LEDs on the front bezel. These indicators let administrators see, at a glance, whether a drive is actively processing I/O before removing it, reducing the risk of accidentally pulling a drive mid-write during hot-swap maintenance.

Form Factor and Dimensions

As a 3.5-inch Large Form Factor drive, the 652620-B21 fits the LFF drive bays found in a wide range of ProLiant DL, ML, and SL chassis. With the Smart Carrier attached, the assembly measures roughly 4.2 inches wide by 6.7 inches deep by 1.1 inches tall, matching the standard HPE hot-plug bay footprint used across Gen8 and Gen9 platforms.

Performance Features

Performance is where the 652620-B21 distinguishes itself from midline or nearline SAS/SATA alternatives.

15,000 RPM Spindle Speed

Spinning at 15,000 RPM, this drive delivers markedly higher IOPS and lower latency than 7.2K or 10K drives. That makes it a strong fit for database workloads, transaction logs, and other I/O-intensive applications where every millisecond of access time affects overall application responsiveness.

SAS 6Gbps Dual-Port Interface

The dual-port SAS 6Gbps interface allows two independent data paths to the drive, which supports redundant controller configurations and higher aggregate throughput in multipath storage setups. This dual-port design is a core reason enterprise SAS drives are favored over single-port SATA drives in production server environments.

Seek Time and Latency

With an average seek time of 3.5 ms and a maximum of 6.8 ms, the 652620-B21 keeps latency low even under heavy random-access loads, which is especially valuable for RAID arrays handling many simultaneous read/write requests.

Server Compatibility: ProLiant Gen8 and Gen9

The 652620-B21 is validated and supported across a broad range of HPE ProLiant Gen8 and Gen9 server families, making it a versatile option for organizations standardizing on a single drive SKU across their server fleet.

Supported ProLiant Gen8 Servers

• ProLiant DL160 Gen8
• ProLiant DL320e Gen8
• ProLiant DL360p Gen8
• ProLiant DL380p Gen8
• ProLiant DL385p Gen8
• ProLiant ML310e Gen8
• ProLiant ML350e Gen8
• ProLiant ML350p Gen8
• ProLiant SL4540 Gen8

Supported ProLiant Gen9 Servers

• ProLiant DL360 Gen9
• ProLiant DL380 Gen9
• ProLiant DL385p Gen9
• ProLiant ML350 Gen9
• Other Gen9 DL/ML platforms configured with LFF SAS drive bays

Always confirm compatibility against your specific server's QuickSpecs sheet or HPE's official documentation before purchasing, since backplane and firmware configurations can vary by chassis SKU.

Part Numbers and Cross-References

When sourcing this drive, you may see it listed under several related identifiers. Knowing these cross-references helps confirm you are purchasing the correct part:

• Option Part Number: 652620-B21
• Spare Part Number: 653952-001
• Model Numbers: EF0600FARNA, EF0600FATFF
• Assembly Numbers: 516810-003, 533871-003

Ideal Use Cases

Thanks to its 15K spindle speed and enterprise workload rating, the 652620-B21 is well suited to a number of production scenarios:

• Database servers running high-transaction OLTP workloads
• Virtualization hosts where multiple VMs generate concurrent random I/O
• RAID 5/6/10 arrays that require consistent, low-latency member drives
• Mission-critical applications where uptime and data integrity are priorities
• Fleet-standardization projects replacing aging Gen8/Gen9 server drives

Installation and Deployment Tips

Because the 652620-B21 ships in a hot-plug Smart Carrier, it can typically be installed or replaced without powering down the host server, provided the array controller and RAID configuration support hot-swap operations. Before installation, confirm firmware compatibility with your ProLiant server's Smart Array controller, and back up any existing data if the drive is replacing an active array member. After installation, most ProLiant systems will automatically detect the new drive through iLO or the Smart Storage Administrator, allowing it to be added to an existing logical volume or configured as a spare.

Benefits of Choosing the HPE 652620-B21

• Genuine HPE-qualified hardware built and tested for ProLiant Gen8/Gen9 compatibility
• Enterprise-grade reliability rating suited for 24/7 operation
• Hot-plug Smart Carrier for simplified maintenance and reduced downtime
• Dual-port SAS interface for redundant, high-availability storage architectures
• Straightforward cross-referencing via well-documented HPE part numbers

Frequently Asked Questions

What is the capacity of the HPE 652620-B21?

The HPE 652620-B21 provides 600GB of raw storage capacity.

Is the 652620-B21 hot-swappable?

Yes. It is delivered in a hot-plug Smart Carrier tray, allowing it to be inserted or removed while the server remains powered on, subject to your RAID controller's supported operations.

Which servers support the 652620-B21?

It is validated for a wide range of HPE ProLiant Gen8 and Gen9 servers, including several DL, ML, and SL series models. Check your specific server's QuickSpecs to confirm bay and backplane compatibility.

What is the difference between the 652620-B21 and its spare part 653952-001?

652620-B21 is the HPE option (sales) part number used when ordering the drive as a new component, while 653952-001 is the corresponding spare part number used for warranty replacements and service parts ordering. Both refer to the same physical drive.

Conclusion

The HPE 652620-B21 remains a solid choice for organizations running ProLiant Gen8 or Gen9 infrastructure that need reliable, high-performance 3.5-inch SAS storage. Its 15,000 RPM spindle, 6Gbps dual-port SAS interface, and hot-plug Smart Carrier design combine to deliver the low-latency, high-availability performance that enterprise workloads demand. Whether you're expanding storage capacity, rebuilding a RAID array, or replacing an aging drive, the 652620-B21 offers a dependable, well-documented option backed by clear part-number cross-references for easy procurement.
