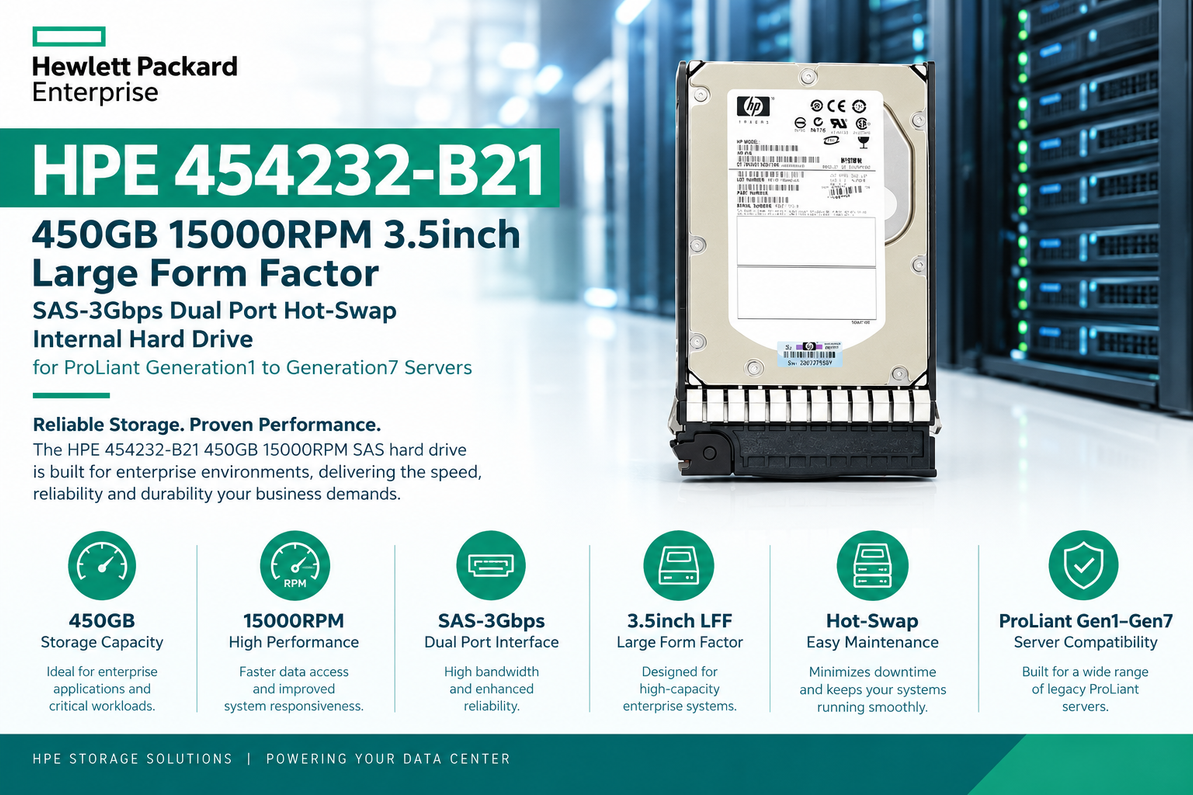

The HPE 454232-B21 Revealed: Fast, Reliable 15K SAS Storage for ProLiant

HPE 454232-B21 450GB 15K SAS Hard Drive: A Dependable Storage Workhorse for Legacy ProLiant Servers

When it comes to keeping older enterprise servers running reliably, the right hard drive can make a surprisingly big difference. The HPE 454232-B21 450GB 15000RPM 3.5-inch Large Form Factor SAS-3Gbps Dual Port Hot-Swap Internal Hard Drive was built for exactly this kind of environment. It combines a fast 15,000 RPM spindle speed, enterprise SAS connectivity, dual-port architecture, and hot-swap functionality in a 3.5-inch LFF design.

HPE's own PartSurfer identifies 454232-B21 as an HP 450GB 15K SAS hot-plug dual-port 3.5-inch hard disk, while HPE QuickSpecs list it as an HP 450GB 3G SAS 15K 3.5-inch Dual Port Enterprise HDD.

For businesses that still depend on compatible ProLiant servers from earlier generations, this drive can be a practical replacement for a failed disk or an additional drive for an existing storage configuration.

Understanding the HPE 454232-B21

The HPE 454232-B21 is a 450GB enterprise SAS hard drive designed around a 15,000 RPM mechanical spindle. It uses a 3Gbps SAS interface, supports dual-port connectivity, and is designed for hot-plug installation in compatible HPE server configurations. HPE documentation lists its maximum synchronous transfer rate as 3Gbps and specifies a 15,000 RPM rotational speed.

The combination is particularly interesting because this is not simply a high-speed desktop hard drive placed inside a server. It belongs to a generation of enterprise storage hardware designed to operate with server controllers, RAID configurations, redundant storage paths, and demanding business workloads.

HPE 454232-B21 Specifications at a Glance

HPE's published specifications give the drive a capacity of 450,098,159,616 bytes, 512-byte sectors, a 3Gbps SAS interface, and typical average read seek time of 3.6ms.

Why 15,000 RPM Still Matters

Faster Mechanical Response

One of the defining features of the HPE 454232-B21 is its 15,000 RPM rotational speed. Mechanical hard drives have to physically rotate their platters before the read/write heads can access the required data. Increasing spindle speed reduces the amount of time the disk typically waits for the required sector to rotate into position.

That makes 15K RPM drives particularly attractive for workloads involving frequent random I/O.

A server handling databases, transactional applications, virtualization, or heavily accessed business files can generate many small read and write requests. In those situations, the responsiveness of a 15K SAS drive can be more useful than simply having a large amount of storage capacity.

HPE's specifications show an average read seek time of approximately 3.6ms, with a full-stroke seek time of approximately 6.6ms.

Performance Rather Than Maximum Capacity

The 450GB capacity may look modest compared with today's multi-terabyte HDDs and SSDs, but that was not the primary purpose of this class of enterprise drive.

The 454232-B21 was designed around a different priority: fast and dependable disk I/O in enterprise server environments.

For an older ProLiant server, maintaining a consistent set of 15K SAS drives can be more important than replacing everything with the highest-capacity disks available today.

SAS-3Gbps Enterprise Connectivity

What SAS Brings to a Server

The drive uses Serial Attached SCSI, commonly known as SAS. SAS is an enterprise-oriented storage interface designed for environments where reliability, scalability, controller compatibility, and redundant connectivity matter.

The HPE 454232-B21 has a maximum synchronous transfer rate of 3Gbps. It is important to understand that 3Gbps describes the interface's theoretical link rate, not the sustained mechanical performance of the hard disk. The actual throughput depends on the drive mechanism, controller, workload, RAID configuration, and other parts of the storage subsystem.

For the ProLiant platforms for which this drive was designed, however, 3Gbps SAS provided an appropriate high-performance storage interface.

Dual-Port SAS for Enterprise Reliability

Two Storage Paths

The dual-port design is another important feature of the 454232-B21.

A dual-port SAS drive can provide two communication paths when the surrounding server, controller, enclosure, and cabling support that architecture. This can be valuable in enterprise storage environments because the storage system does not necessarily have to depend on a single communication path.

That distinction matters in professional infrastructure. If a cable, controller path, or connection experiences a problem, a properly configured redundant architecture can continue operating through another path.

The HPE QuickSpecs specifically classify the 454232-B21 as a 3.5-inch Dual Port Enterprise HDD.

It is worth remembering that dual-port functionality by itself does not create complete redundancy. The entire storage infrastructure must support redundant paths.

3.5-Inch Large Form Factor Design

Built for LFF Server Bays

The HPE 454232-B21 uses a 3.5-inch Large Form Factor, commonly abbreviated as LFF.

This makes it suitable for compatible ProLiant servers equipped with LFF drive bays. Before purchasing a replacement drive, it is always important to check whether the target server uses LFF or SFF bays.

A 3.5-inch LFF drive is physically different from a 2.5-inch SFF drive, so the two should not be treated as interchangeable simply because they use the same SAS interface.

The published HPE specifications identify the 454232-B21 as a 3.5-inch enterprise SAS drive, and HPE's QuickSpecs place it among its 3.5-inch SAS hot-plug enterprise options.

Hot-Swap Convenience for Server Maintenance

Replace a Failed Drive Without Shutting Everything Down

Another major advantage of the HPE 454232-B21 is its hot-plug capability.

In a compatible server and RAID configuration, a failed drive can be removed and replaced while the server remains operational. This is one of those features that may seem unimportant until a hard drive fails during business hours.

Instead of shutting down the server and interrupting every application running on it, an administrator can replace the affected disk and allow the RAID system to rebuild.

HPE's PartSurfer description specifically identifies the 454232-B21 as a 450GB 15K SAS hot-plug dual-port 3.5-inch hard disk.

Naturally, hot-swapping should be performed through the server's supported procedure. Removing the wrong disk from a RAID array can create a much bigger problem than the original drive failure.

Compatibility With HPE ProLiant Servers

Designed for Earlier ProLiant Generations

The HPE 454232-B21 belongs to an older generation of HPE enterprise storage hardware, making compatibility particularly important.

Available compatibility references associate the drive with numerous ProLiant platforms, including models such as the DL120, DL160, DL165, DL180, DL320, DL360, DL380, DL385, ML110, ML150, ML310, ML350, ML370, and ML570, across various generations and configurations.

However, compatibility can vary according to the exact server configuration, backplane, controller, firmware, drive cage, and RAID setup. Therefore, the safest approach is to verify the precise server model and storage controller before installation.

Ideal Workloads for the HPE 454232-B21

Database Servers

Databases can generate large numbers of small, random storage operations. A 15K RPM enterprise HDD can be well suited to older database systems where fast mechanical storage is still required.

For legacy database servers, replacing a failed 15K drive with another drive of the same class can help maintain a familiar performance profile.

Virtualization

Virtualization places additional pressure on storage because multiple virtual machines may access the same physical disk subsystem at the same time.

A properly configured array of 15K SAS drives can provide responsive storage for smaller or older virtualization environments, although modern SSD storage will generally provide significantly better latency and IOPS.

Business Applications

ERP systems, accounting applications, file services, internal databases, and other business software can benefit from reliable enterprise storage.

The 454232-B21 is particularly relevant when an organization wants to keep an existing ProLiant environment operational rather than replace an entire server platform.

HPE 454232-B21 and RAID Storage

Why RAID Matters

The 454232-B21 is often most useful when it forms part of a RAID array.

RAID combines multiple physical drives into a logical storage system. Depending on the RAID level, an array can provide additional performance, redundancy, or a balance between the two.

For example, mirrored RAID configurations prioritize redundancy, while parity-based configurations can provide fault tolerance with more efficient use of available capacity.

The drive itself does not provide RAID functionality. The RAID controller or storage software manages the array.

For older ProLiant systems, compatible HPE Smart Array controllers can play an important role in determining how the drives are configured and how the resulting storage performs.

Enterprise Reliability Versus Consumer Storage

A server hard drive has a very different job from a typical desktop HDD.

Consumer storage is generally designed around cost-effective capacity and everyday computing. Enterprise SAS drives are designed for server environments where the storage subsystem may operate continuously and handle simultaneous requests from multiple applications.

The 454232-B21 combines SAS connectivity, dual-port operation, hot-plug capability, and a 15K spindle speed, all of which reflect its enterprise-oriented design.

This makes it a more natural fit for compatible HPE ProLiant infrastructure than a conventional consumer SATA hard drive.

450GB Capacity for Legacy Server Environments

A Practical Size for Performance-Oriented Storage

450GB is not a capacity that would normally be considered large by modern standards. Today, users can purchase HDDs and SSDs with capacities many times greater.

But capacity is only one part of storage performance.

For a legacy ProLiant server running an application that requires fast disk access but does not need several terabytes of storage, a 450GB 15K SAS drive can still make sense.

It can also be useful as a replacement disk when maintaining an existing RAID array where matching capacity and drive characteristics are important.

HPE 454232-B21 Versus Modern SSDs

Where the 15K HDD Still Makes Sense

Modern SSDs are dramatically faster than mechanical hard drives in terms of latency and random I/O performance. If you are building a completely new server today, an SSD-based storage solution will often be the better performance choice.

But replacing legacy infrastructure is not always simple.

An organization may have an older ProLiant server running a stable business application that does not justify a complete hardware migration. In that situation, replacing a failed 15K SAS HDD with a compatible 454232-B21 can be a sensible maintenance decision.

The goal is not necessarily to make old hardware perform like modern hardware. It is to keep a proven system operating reliably and predictably.

Important Things to Check Before Buying

Verify the Exact Part Number

The HPE 454232-B21 should not be confused with similar-looking HPE SAS drives.

For example, HPE documentation distinguishes the 454232-B21 450GB 3G SAS 15K 3.5-inch dual-port enterprise drive from the 454234-B21, which is a non-hot-plug version.

That small difference in part number can matter significantly when you're trying to maintain a specific server configuration.

Confirm the Drive Bay

Make sure the target ProLiant server uses a compatible 3.5-inch LFF bay.

Check the RAID Controller

The installed Smart Array or other SAS controller should support the drive and its intended configuration.

Check Firmware and Drive Status

For used or refurbished drives, checking SMART information, drive health, power-on hours, and error history is especially important. Enterprise hard drives can remain useful for many years, but their operating history matters when purchasing replacement hardware.

Why the HPE 454232-B21 Remains Useful

The most appealing thing about the HPE 454232-B21 today is not that it competes with modern NVMe SSDs. It doesn't.

Its real value is that it belongs to a well-established enterprise storage ecosystem.

If you have a compatible older ProLiant server with a failed 450GB 15K SAS drive, finding the correct replacement can be much easier and less disruptive than redesigning the entire storage environment.

The combination of 450GB capacity, 15,000 RPM speed, 3Gbps SAS, dual-port connectivity, 3.5-inch LFF construction, and hot-plug support makes it a practical maintenance component for supported legacy HPE servers.

Final Thoughts

The HPE 454232-B21 450GB 15000RPM 3.5-inch Large Form Factor SAS-3Gbps Dual Port Hot-Swap Internal Hard Drive is a classic enterprise storage solution built for an era when high-speed mechanical disks were at the heart of business servers.

Its 15K RPM spindle delivers the responsive mechanical performance expected from performance-oriented enterprise HDDs, while the SAS interface provides the connectivity and features needed by compatible server storage systems. Dual-port support adds another layer of flexibility for properly configured redundant storage environments, and hot-plug functionality makes routine drive replacement considerably easier.

HPE's own documentation confirms the core specifications of the drive, including its 450GB capacity, 3Gbps SAS interface, 15,000 RPM speed, and dual-port 3.5-inch enterprise design.

For businesses still operating compatible ProLiant Generation 1 through Generation 7-era infrastructure, the HPE 454232-B21 can therefore be more than just an old hard drive. It can be a straightforward way to keep an existing server, RAID array, and business workload running without making an unnecessary investment in an entirely new storage platform.
