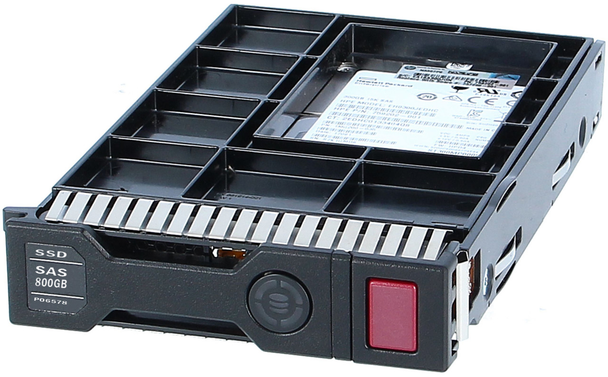

HPE P04529-K21 800GB 3.5in DS SAS-12G SCC Mixed Use G9 G10 SSD

HPE P04529-K21 800GB 3.5inch LFF Digitally Signed Firmware SAS-12Gbps Smart Carrier Converter Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Servers (Brand New with 3 Years Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of high random read and write IOPS performance. HPE (MU) SSDs typically have an endurance of between <1 and <10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-deSCCribing icons on the HPE Smart Carrier Converter take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications and data warehousing.
Achieve higher IOPs to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2, and M.2 Enablement Kits.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carrier Converters
HPE Hard Drives with Smart Carrier Converters are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE P04529-K21 Mixed Use Solid State Drive has a 3.5 inch form factor and a 12 Gbps external data transfer rate. It has a 800 GB capacity. This Large Form Factor Solid State Drive with Digitally Signed Firmware uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: P04529-K21

Option Part Number: P04529-K21
Spare Part Number: P06578-001
Model Number: MO000800JWTBR
Assembly Number: P04174-002

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
NAND Flash Memory Type: Multi-level cell (MLC)
Form Factor: 3.5inch LFF
Interface: SAS 12Gbps
Features: Digitally Signed Firmware
Carrier Type: Smart Carrier Converter
Workload Type: Mixed Use
Plug Type: Hot Plug
Bundled With: HPE Smart Carrier Converter

Performance

Drive Writes Per Day (DWPD): 3
30 Days Writes: 4380
Drive Transfer Rate: 1.2 GB/sec (external)
Internal Data Rate: 1075 MBps (read) / 1030 MBps (write)
Random Read IOPS (4KiB, Q=16): 104000
Max Random Read IOPS (4KiB): 165000@Q32
Random Write IOPS (4KiB, Q=16): 85000
Max Random Write IOPS (4KiB): 85000@16

Expansion & Connectivity

Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 3.5" LFF

Power Consumption

Idle: 4.26 Watt
Random Read: 4.97 Watt
Random Write: 4.97 Watt
Sequential Read: 6.71 Watt
Sequential Write: 6.95 Watt
Maximum: 6.71 Watt

Product Dimensions

Depth: 8.75 inch
Width: 7.25 inch
Height: 5.50 inch
Weight: 3.00 lbs

Compatibility Information

Designed For

HPE ProLiant DL Series: DL360 Gen10 (3.5inch), DL360 Gen10 Base (3.5inch), DL360 Gen10 Entry (3.5inch), DL360 Gen10 High Performance (3.5inch), DL360 Gen10 Low (3.5inch), DL360 Gen10 Performance (3.5inch), DL360 Gen10 Solution (3.5inch), DL360 Gen9 (3.5inch), DL360 Gen9 Base (3.5inch), DL360 Gen9 CMS (3.5inch), DL360 Gen9 Entry (3.5inch), DL360 Gen9 Performance (3.5inch), DL360 Gen9 Special Server (3.5inch), DL380 Gen10 (3.5inch), DL380 Gen10 Base (3.5inch), DL380 Gen10 Entry (3.5inch), DL380 Gen10 High Performance (3.5inch), DL380 Gen10 Performance (3.5inch), DL380 Gen10 Solution (3.5inch), DL380 Gen9 (3.5inch), DL380 Gen9 Base (3.5inch), DL380 Gen9 Entry (3.5inch), DL380 Gen9 High Performance (3.5inch), DL380 Gen9 Performance (3.5inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (3.5inch), DL380 Gen9 Special (3.5inch), DL385 Gen10 (3.5inch), DL385 Gen10 Base (3.5inch), DL385 Gen10 Entry (3.5inch), DL385 Gen10 High-Preperformance (3.5inch), DL385 Gen10 High-Performance (3.5inch), DL385 Gen10 Performance (3.5inch), DL385 Gen10 Solution (3.5inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
