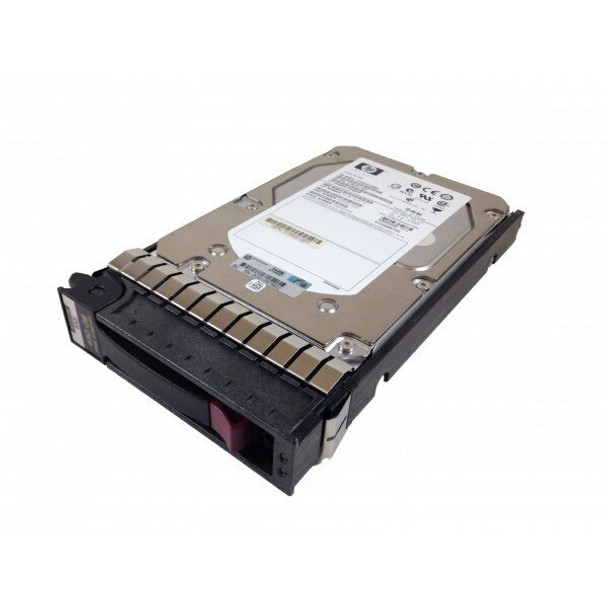

HPE 693672-003 4TB 7200RPM 3.5in DP SAS 6G Midline G4-G7 HDD

In Stock - Ship Same Day
  • HPE 693672-003 4TB 7200RPM 3.5inch Large Form Factor Dual Port SAS-6Gbps Midline Hard Drive for ProLiant Gen2 to Gen7 Servers (30 Days Warranty)
  • HPE 693672-003 4TB 7200RPM 3.5inch Large Form Factor Dual Port SAS-6Gbps Midline Hard Drive for ProLiant Gen2 to Gen7 Servers (30 Days Warranty)


HPE 693672-003 4TB 7200RPM 3.5inch Large Form Factor Dual Port SAS-6Gbps Midline Hard Drive for ProLiant Gen2 to Gen7 Servers (30 Days Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Engineered to Deliver High Performance and Reliability Across HPE server and Storage Platforms
HPE HDDs are tuned and tested with on-going quality monitoring throughout their lifecycle
HPE optimizes HDD firmware for predictable and consistent HDD performance
HPE’s industry-leading rigorous testing and qualification program is backed by 2.4 million test hours
Pre-failure Alerts with HPE Smart Array Controller, Systems Insight Manager, and HPE Smart firmware
3x faster firmware and software updates with HPE Service Pack for ProLiant (HPE SPP)

HPE HDDs are Designed to Deliver Enterprise Class Security at Both Hardware and Firmware Levels
HPE Digitally Signed Firmware helps prevent against malicious attacks
HPE Smart Array SR Secure Encryption is a FIPS 140-2 Level 1 validated enterprise class controller-based encryption solution for data-at-rest on all SAS/SATA drives
HPE Smart Carriers report drive activity and health

HPE Supports Your Data-Driven Applications With a Broad Portfolio of HDDs
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments
Broad portfolio of HDDs, optimized for HPE server platforms, provide up to 14 TB of storage
Available in 2.5-inch Small Form Factor and 3.5-inch Large Form Factor in a wide variety of capacity points
Simplify HDD planning and standardize HDDs across HPE server and storage solutions
Common HDD carriers offer consistency and compatibility across HPE server platforms

Support Entry/SMB servers with value priced drives
HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB.
Non-mission critical hard drives at the lowest $/GB.
6 Gb/sec data transfer rate to support existing servers.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 693672-003 Midline Hard Drive has a 3.5 inch form factor and 6 Gbps data transfer rate. It has a spindle speed of up to 7200 RPM and a 4 TB storage capacity. This Large Form Factor Dual Port Hard Drive uses a SAS-6Gbps interface and has 30 Days Warranty.


Brand: HPE
MPN: 693672-003

Option Part Number: 693689-B21
Spare Part Number: 693721-001
Model Number: MB4000FCVCB
Assembly Number: 693672-003
HPE GPN: 652755-007


Device Type: Hard Drive - Hot-Swap
Capacity: 4 TB
Interface: SAS 6Gbps
Form Factor: 3.5 inch LFF
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Pluggable
Carrier Type: Standard Carrier
Workload Type: Midline
Features: Dual Port
Bundled with: HPE Standard Carrier


Drive Transfer Rate: 6 Gb/sec (external)
Spindle Speed: 7200 RPM
Average Seek Time: 8.5 ms
Max Seek Time: 15.7 ms
Track-to-Track Seek Time: 0.7 ms

Expansion & Connectivity

Compatible Bays: 1 x Hot-Swap - 3.5" LFF
Interfaces: 1 x SAS 6Gb/s

Environmental Parameters

Max Operating Temperature: 35 °C
Min Operating Temperature: 10 °C


Height: 2.64 cm
Width: 11.07 cm
Depth: 18.87 cm

Compatibility Information

Designed for

HPE ProLiant DL Series: DL1000 DL120 (Gen5 Gen6 Gen7), DL140 (Gen3), DL145 (Gen3), DL160 (Gen5 Gen5p Gen6 Gen7), DL160se (Gen6 Gen7), DL165 (Gen5 Gen5p Gen6 Gen7), DL170e (Gen6), DL170h (Gen6), DL2x170h (Gen6), DL4x170h (Gen6), DL180 (Gen5 Gen6 Gen7), DL185 (Gen5), DL320 (Gen3 Gen4 Gen5 Gen5p Gen6 Gen7), DL320sDL370 (Gen6 Gen7), DL380 (Gen4 Gen5 Gen6 Gen7), DL385 (Gen5 Gen5p Gen6 Gen7), DL580 (Gen4 Gen5 Gen6 Gen7), DL585 (Gen2 Gen5 Gen6 Gen7), DL785 (Gen5 Gen6)

HPE ProLiant ML Series: ML110 (Gen7), ML150 (Gen5 Gen6 Gen7), ML310 (Gen5p), ML330 (Gen6), ML350 (Gen5 Gen6 Gen7), ML370 (Gen5 Gen6 Gen7)

HPE Storage Arrays: D2600 MDS600 MSA60 P4300 P4500 P4000 (Gen2), 60 Modular Array StoreAll 9730

HPE StoreEasy: 1430 1440 1530 1540 1630 1640 1830 1840 5530 X1400 X1500 X1600 X1800 X3400 X3800

HPE Modular Disk System 600

HPE StoreEasy 12 LFF Disk Enclosure

Contact us if you have any question about this product to verify this model’s compatibility with your current server or storage array.

View AllClose

Warranty Information

30 Days Warranty
