HP

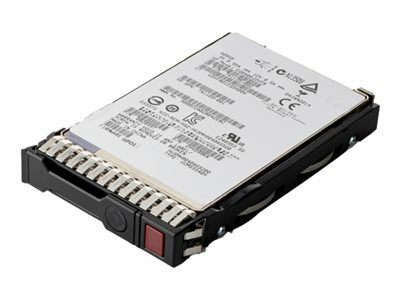

HPE P04954-001-SC 480GB 2.5in DS SATA-6G Read Intensive G9 G10 SSD

SKU:
P04954-001-SC
UPC:
7436445369311
MPN:
P04954-001-SC
Condition:
New
Availability:
In Stock - Ship Same Day
  • HPE P04954-001-SC 480GB 2.5inch SFF Triple-level cell Digitally Signed Firmware SATA-6Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (Brand New with 3 Years Warranty)
  • HPE P04954-001-SC 480GB 2.5inch SFF Triple-level cell Digitally Signed Firmware SATA-6Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (Brand New with 3 Years Warranty)
$359.95

Description

HPE P04954-001-SC 480GB 2.5inch Small Form Factor (SFF) Triple-level cell Digitally Signed Firmware (DS) SATA-6Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (Brand New with 3 Years Warranty)

HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPS performance. HPE (RI) SSDs typically have an endurance of <1 drive writes per day. All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPs to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2, and M.2 Enablement Kits.

HPE Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD SKU offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE P04954-001-SC Read Intensive Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 480GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: P04954-001-SC

Option Part Number: P06194-B21
Spare Part Number: P06571-001
Model Number: VK000480GWTHA
Assembly Number: P04954-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity Type: Single
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Bundled with: HPE SmartDrive Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7.00 mm(0.30 inch)

Performance

30 Days Writes (TB): 430
Endurance DWPD (Drive Writes Per Day): 0.50
Drive Transfer Rate: 6 GBps (external)
MAX Seq. Reads Throughput (MiB/s): 530
MAX Seq. Writes Throughput (MiB/s): 300
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 65
Random Read IOPS (4KiB, Q=16): 65000
Random Write IOPS (4KiB, Q=16): 15000
MAX Random Read IOPS (4KiB): 65500@Q32
MAX Random Write IOPS (4KiB): 15400@Q1

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 0.78 Watt
Random Read: 1.61 Watt
Random Write: 1.61 Watt
Sequential Read: 1.68 Watt
Sequential Write: 1.90 Watt
Random Read/Write: 1.61 Watt
MAX: 2.00 Watt

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Product Dimensions & Weight

Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Designed for

HPE Apollo Series: 4200 Gen9 for Google (2.5 inch)

HPE ProLiant DL Series: DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL325 Gen10 (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 All Flash Server for Datera (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 Hybrid Server for Datera (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for CTERA (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 Server for CTERA (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML30 Gen10 (2.5 inch), ML30 Gen10 Entry (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Solution (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 High Performance (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 SMB (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Special Server (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch) | HPE Synergy 480 Gen10 Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.

View AllClose

Warranty Information

3 Years Warranty
