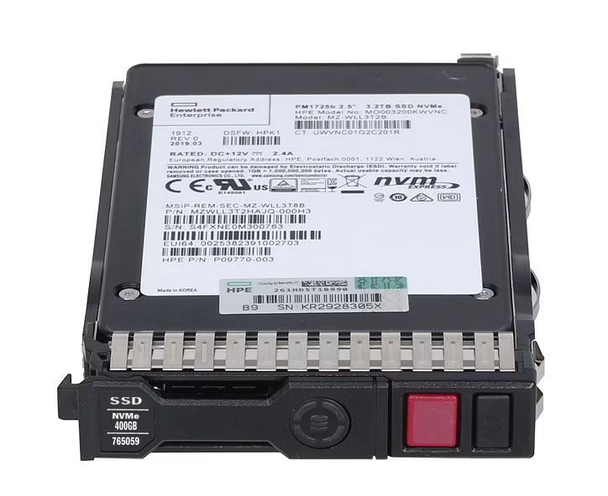

HPE MO0400KEFHN 400GB 2.5in NVMe PCIe SCN ME Write Intensive G10 SSD
- In Stock - Ship Same Day
HPE MO0400KEFHN 400GB 2.5inch Small Form Factor NVMe PCIe Mainstream Endurance SCN Write Intensive Solid State Drive for ProLiant Gen9 Gen10 Servers (New Bulk Pack With 90 Days Warranty)
HPE Solid State Drives (SSDs) deliver exceptional performance and endurance while reducing power consumption for customers with applications requiring high random read and write IOPs performance. These drives deliver higher performance, better latency, and more power-efficient solutions when compared with traditional rotating media.
HPE Server Write Intensive (WI) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of write IOPS performance. HPE (WI) SSDs typically have an endurance of >=10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.
HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in capacities up to 15.3 TB and growing.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.
The HPE MO0400KEFHN Write Intensive Solid State Drive has a 2.5 inch form factor and a Peripheral Component Interconnect express. It has a 400 GB capacity. This Small Form Factor Non-Volatile Memory express Solid State Drive uses a Peripheral Component Interconnect express interface and has 90 Days Warranty.
Option Part Number: 736936-B21
Spare Part Number: 765059-001
Model Number: MO0400KEFHN
Assembly Number: 764891-001
Device Type: Solid State Drive - Hot-Swap
Capacity: 400 GB
Form Factor: 2.5 inch SFF
Interface: PCI Express 3.0 x4 (NVMe)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Write Intensive (WI)
NAND Flash Memory Type: Multi-Level Cell (MLC)
Bundled with: HPE Smart Carrier NVMe (SCN)
Features: Power Loss Protection
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)
Endurance DWPD (Drive Writes Per Day): 10
MAX Seq Reads Throughput (MiB/s): 2600
Max Seq Writes Throughput (MiB/s): 1000
Random Read IOPS (4KiB, Q=16): 150000
Random Write IOPS (4KiB, Q=16): 80000
Expansion & Connectivity
Interfaces: 1 x PCI Express 3.0 x4 (NVMe)
Compatible Bay: 2.5" SFF
Power Consumption: 9 Watt
Maximum: 25.00 Watt
Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F
HPE ProLiant DL Series: DL360 Gen10 Base (2.5inch), DL360 Gen10 Entry (2.5inch), DL360 Gen10 High Performance (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Performance (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 Solution (2.5inch), DL388 Gen9 (2.5inch), DL388 Gen9 Base (2.5inch), DL580 Gen9 (2.5inch), DL580 Gen9 Database (2.5inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5inch)
HPE Synergy 480 Gen10 Base Compute Module (2.5inch), 480 Gen10 Entry Compute Module (2.5inch), 480 Gen10 Performance Compute Module (2.5inch), 480 Gen10 Premium Backplane Compute Module (2.5inch), 480 Gen10 Standard BackPlane Compute Module (2.5inch), 480 Gen10 w/o Drives Compute Module (2.5inch)
Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
