HP

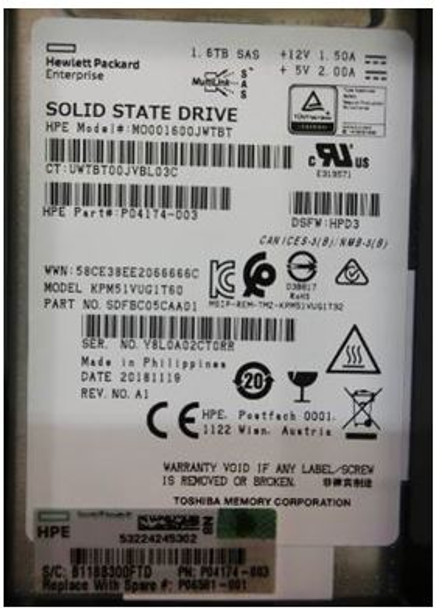

HPE MO001600JWTBT-LPC 1.6TB 3.5in DS SAS-12G Mixed Use G9 G10 SSD

SKU:
MO001600JWTBT-LPC
UPC:
190017284187
MPN:
MO001600JWTBT-LPC
Condition:
New
Availability:
Out Of Stock
  • HPE MO001600JWTBT-LPC 1.6TB 3.5inch LFF Digitally Signed Firmware Triple-level cell SAS-12Gbps Low Profile Converter Mixed Use Solid State Drive for ProLiant Generation9 Generation10 Servers (Brand New with 3 Years Warranty)
  • HPE MO001600JWTBT-LPC 1.6TB 3.5inch LFF Digitally Signed Firmware Triple-level cell SAS-12Gbps Low Profile Converter Mixed Use Solid State Drive for ProLiant Generation9 Generation10 Servers (Brand New with 3 Years Warranty)
$1,314.95

Out of stock

Description

HPE MO001600JWTBT-LPC 1.6TB 3.5inch Large Form Factor Digitally Signed Firmware SAS-12Gbps Low Profile Converter (LPC) Mixed Use Solid State Drive for ProLiant Gen9 Generation10 Servers (Brand New with 3 Years Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

The HPE MO001600JWTBT-LPC Mixed Use Solid State Drive has a 3.5 inch form factor and a 12 Gbps external data transfer rate. It has a 1.6 TB capacity. This Large Form Factor Solid State Drive uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: MO001600JWTBT-LPC

Option Part Number: P04535-B21
Spare Part Number: P06581-001
Model Number: MO001600JWTBT
Assembly Number: P04174-003

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Connectivity: Dual Port
Plug Type: Hot Pluggable
Carrier Type: Low Profile Converter (LPC)
Workload Type: Mixed Use
Bundled with: HPE Low Profile Converter (LPC)
Features: Digitally Signed Firmware
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm

Performance

30 Days Writes: 8760
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate (External): 12 Gb/sec
Random Read IOPS (4KiB, Q=16): 109000
Max Random Read IOPS (4KiB): 165000@Q32
Random Write IOPS (4KiB, Q=16): 105000
Max Random Write IOPS (4KiB): 105000@Q16
MAX Seq Reads Throughput (MiB/s): 1075
Max Seq Writes Throughput (MiB/s): 1030
Random Read Avg. Latency uSec (4KiB,Q1): 135
Random Write Avg. Latency uSec (4KiB,Q1): 35

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF

Power Consumption

Idle Time: 5.00 Watt
Random Read: 6.00 Watt
Random Write: 6.00 Watt
Sequential Read: 6.98 Watt
Sequential Write: 6.98 Watt
Random Read/Write: 5.43 Watt
Maximum: 8.98

Product Dimensions & Weight

Height: 5.50 inch (13.97 cm)
Width: 7.25 inch (18.41 cm)
Depth: 8.75 inch (22.23 cm)
Weight: 3.00 lbs (1.36 kg)

Compatibility Information

Designed For

HPE Apollo Series: 4200 Gen9 (3.5 inch), 4510 Gen9 (3.5 inch)

HPE ProLiant DL Series: DL325 Gen10 (3.5 inch), DL325 Gen10 Base (3.5 inch), DL325 Gen10 Entry (3.5 inch), DL325 Gen10 Performance (3.5 inch), DL325 Gen10 Plus (3.5 inch), DL325 Gen10 SMB Solution (3.5 inch), DL325 Gen10 Solution (3.5 inch), DX380 Gen10 (3.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 High Performance (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 SMB (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Special Server (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.

View AllClose

Warranty Information

3 Years Warranty
