HPE 877014-002-SC 960GB 2.5in DS SATA-6G Mixed Use G9 G10 SSD
- In Stock - Ship Same Day
HPE 877014-002-SC 960GB 2.5inch Small Form Factor Digitally Signed Firmware SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Servers (New Sealed Spare with 1 Year Warranty)
HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.
High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.
Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.
HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.
Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

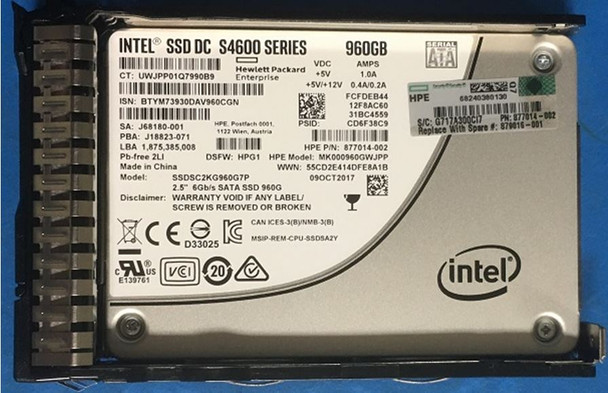

The HPE 877014-002-SC Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps external data transfer rate. It has a 960 GB capacity. This Small Form Factor Solid State Drive with Digitally Signed Firmware uses a SATA-6Gbps interface and has 1 Year Warranty.
Option Part Number: 877782-B21
Spare Part Number: 879016-001
Model Number: MK000960GWJPP
Assembly Number: 877014-002
Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
Form Factor: 2.5 inch SFF
Features: Digitally Signed Firmware
Carrier Type: Smart Carrier
Plug Type: Hot Plug
Workload Type: Mixed Use
Bundled With: HPE Smart Carrier
Drive Transfer Rate: 6 Gb/sec (external)
30 Days Writes(TB): 5250
Endurance DWPD: 3.00
MAX Seq Reads Throughput (MiB/s): 500
MAX Seq Writes Throughput(MiB/s): 455
Random Read Average Latency uSec(4KiB,Q1): 120
Random Write Average Latency uSec(4KiB,Q1): 48
Random Read IOPS (4KiB,Q=16): 60000
Random Write IOPS (4KiB,Q=16): 45000
MAX Random Read IOPS(4KiB): 65000@Q32
MAX Random Write IOPS (4KiB): 47500@Q32
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 2.5" SFF
Idle: 1.31 Watt
Random Read: 2.64 Watt
Random Write: 4.90 Watt
Sequential Read: 2.28 Watt
Sequential Write: 4.74 Watt
Random R/W: 3.41 Watt
HPE ProLiant DL Series: DL120 Gen9 (2.5inch), DL120 Gen9 Entry (2.5inch), DL20 Gen9 (2.5inch), DL20 Gen9 Base (2.5inch), DL20 Gen9 Entry (2.5inch), DL20 Gen9 Performance (2.5inch), DL20 Gen9 Solution (2.5inch), DL20 Gen9 Special Server (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 Solution (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch)
HPE ProLiant ML Series: ML110 Gen10 (2.5inch), ML110 Gen10 Entry (2.5inch), ML110 Gen10 Performance (2.5inch), ML110 Gen10 Solution (2.5inch), ML110 Gen9 (2.5inch), ML110 Gen9 Base (2.5inch), ML110 Gen9 Entry (2.5inch), ML30 Gen9 Entry (2.5inch), ML30 Gen9 Solution (2.5inch), ML350 Gen10 (2.5inch), ML350 Gen10 Base (2.5inch), ML350 Gen10 Entry (2.5inch), ML350 Gen10 Performance (2.5inch), ML350 Gen10 Solution (2.5inch), ML350 Gen10 Sub-Entry (2.5inch)
HPE ProLiant XL Series: XL170r Gen10 (2.5inch)
Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
